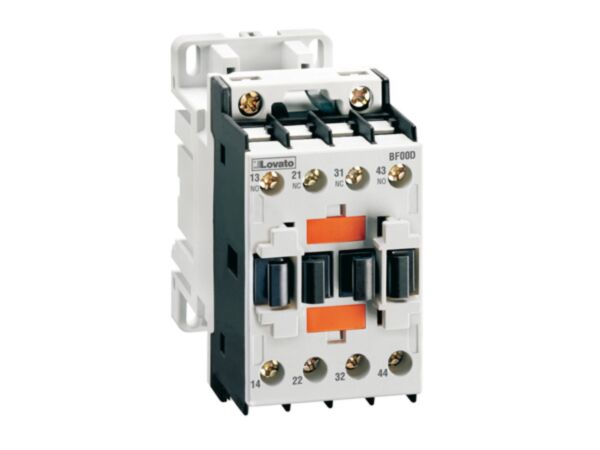

BF0022D024 - CONTROL RELAY 2NO+2NC 24VDC

Why Choose the BF0022D024?

Lovato’s BF0022D024 is a compact control relay for AC and DC control circuits, equipped with a 24 V DC coil and four poles with 2NO+2NC auxiliary contacts. Designed for straightforward installation on 35 mm DIN rail or by screw mounting, it suits modern control panels and machinery. The BF00 series build ensures dependable switching performance across diverse automation tasks.

With a rated insulation voltage of 690 V, 6 kV impulse withstand and 10 A Ith, this relay offers strong electrical endurance for control duty. A mechanical life of 20,000,000 cycles and operation from -50 to 70 °C support demanding environments up to 3000 m altitude. Conforms to IEC/EN 60947-1/-5-1, UL and CSA standards; Pollution degree 3.

Key Benefits

• Reliable 24 V DC coil for stable control circuit operation.
• 2NO+2NC auxiliary contacts across four poles for flexible logic.
• High insulation rating 690 V and 6 kV impulse withstand.
• 10 A thermal current for robust general-purpose control switching.
• Long mechanical life rated 20,000,000 cycles to minimise downtime.
• Wide operating temperature -50 to 70 °C for harsh environments.
• DIN rail 35 mm or screw mounting for fast panel integration.
• Compliance with IEC/EN, UL, and CSA standards for assured suitability.

Technical Specification

• Product type designation: BF00
• Number of poles: 4
• Rated insulation voltage Ui (IEC/EN): 690 V
• Rated impulse withstand voltage Uimp: 6 kV
• Ith (IEC): 10 A
• Terminal tightening torque: 1.5 to 1.8 Nm
• Weight: 490 g
• Mechanical life: 20000000 cycles
• Operating temperature: -50 to 70 °C
• Storage temperature: -60 to 80 °C
• Max altitude: 3000 m
• Pollution degree: 3

What’s Included

• Lovato BF0022D024 control relay
• Installation and safety information
• Manufacturer datasheet (online access)

Applications

• Control circuits in industrial automation and machinery panels
• Auxiliary switching, interlocking, and signalling tasks
• General-purpose relay logic with 24 V DC coil control
• Environments requiring wide operating temperature capability
• Installations needing screw or 35 mm DIN rail mounting

Safety note: Installation must be performed by qualified personnel. De-energise circuits before wiring, observe the specified terminal tightening torque of 1.5 to 1.8 Nm, and operate within the stated environmental limits.
