BF0022D012 - CONTROL RELAY 2NO+2NC 12VDC

Why Choose the BF0022D012?

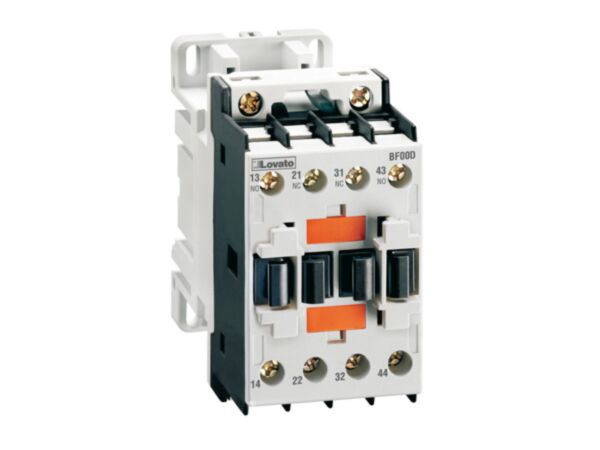

Lovato BF0022D012 is a control relay with AC and DC control circuit capability for dependable panel integration. It features a 12 V DC coil and four poles with 2NO+2NC auxiliary contacts for accurate signal switching. Installation is simple by screw fixing or on a 35 mm DIN rail, making it suitable for new builds and upgrades across industrial control applications.

Engineered for endurance, this BF00 designation relay offers Ui 690 V and 6 kV impulse withstand, with an Ith of 10 A for robust control duty. A mechanical life of 20,000,000 cycles and -50 to 70 °C operating range ensure reliability in demanding environments up to 3000 m altitude, Pollution Degree 3. It conforms to IEC/EN 60947-1/-5-1 as well as UL and CSA standards.

Key Benefits

• Flexible 2NO+2NC contacts across four poles for versatile control.
• 12 V DC coil suitable for low-voltage control circuits.
• High dielectric strength: Ui 690 V and 6 kV impulse withstand.
• Robust 10 A Ith for dependable switching of control loads.
• Wide operating temperature range from -50 °C to 70 °C.
• Long mechanical life rated at 20 million cycles.
• Easy screw or 35 mm DIN rail mounting.

Technical Specification

• Product type designation: BF00
• Number of poles: 4
• Rated insulation voltage Ui (IEC/EN): 690 V
• Rated impulse withstand voltage Uimp: 6 kV
• Ith (IEC): 10 A
• Terminal tightening torque: 1.5 to 1.8 Nm
• Weight: 490 g
• Mechanical life: 20000000 cycles
• Operating temperature: -50 to 70 °C
• Storage temperature: -60 to 80 °C
• Max altitude: 3000 m
• Pollution degree: 3

What’s Included

• Lovato BF0022D012 control relay
• Manufacturer documentation (downloadable datasheet)
• Protective packaging for transit

Applications

• Industrial control panels and machine automation
• Signal switching and interlocking circuits
• HVAC and building services control
• Process control and auxiliary contact expansion
• OEM equipment and panel upgrades

Safety note: Install and commission by qualified personnel only. Isolate power before work, follow relevant standards, apply 1.5–1.8 Nm terminal torque, and operate within the specified voltage, temperature, altitude and pollution degree.
