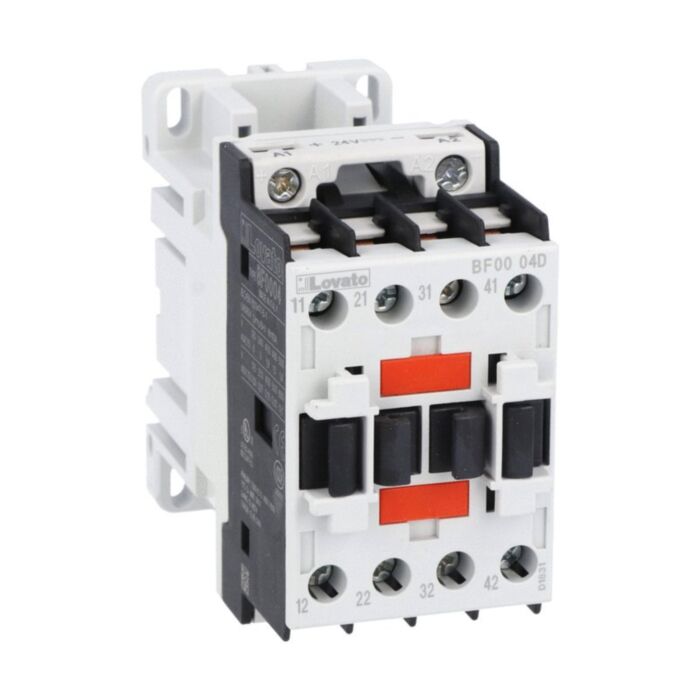

BF0004D024 - CONTROL RELAY 4NC 24VDC
MPN: BF0004D024
Special Price
£95.38
£79.48
Regular Price
£158.96
Why Choose the BF0004D024?
The Lovato BF0004D024 control relay delivers dependable switching for DC control circuits. Featuring a 24 V DC coil and four normally closed auxiliary contacts (4NC), this 4-pole unit suits panel builders and OEMs seeking compact, robust performance. SKU BF0004D024 supports screw fixing or 35 mm DIN rail mounting, streamlining installation in new builds and retrofits.
Built to the BF00 designation, this control relay offers Ui 690 V, 6 kV impulse withstand, and Ith 10 A, with a mechanical life of 20,000,000 cycles. It operates from -50 to 70 °C, up to 3000 m altitude, pollution degree 3, and meets IEC/EN 60947-1/-5-1, UL and CSA standards for reliable integration.
Key Benefits
- 24 V DC coil delivers stable, predictable control performance.
- Four NC auxiliary contacts support normally closed switching logic.
- 4-pole configuration enables multi-circuit or interlocking applications.
- High insulation rating Ui 690 V improves electrical separation.
- 6 kV impulse withstand enhances resilience to transient overvoltages.
- Ith 10 A rating suits a wide range of control loads.
- Broad -50 to 70 °C operating range for demanding environments.
- Screw or 35 mm DIN rail mounting for flexible installation.
Technical Specification
- Product type designation: BF00
- Number of poles: 4
- Rated insulation voltage Ui (IEC/EN): 690 V
- Rated impulse withstand voltage Uimp: 6 kV
- Ith (IEC): 10 A
- Terminal tightening torque: 1.5 to 1.8 Nm
- Weight: 496 g
- Mechanical life: 20000000 cycles
- Operating temperature: -50 to 70 °C
- Storage temperature: -60 to 80 °C
- Max altitude: 3000 m
- Pollution degree: 3
What’s Included
- Lovato BF0004D024 control relay unit
- Quick start and safety information
- Standard packaging
Applications
- Industrial control panels and automation cabinets
- Interlocking and logic circuits requiring normally closed contacts
- Auxiliary switching in machine control systems
- HVAC and building management control circuits
Frequently Asked Questions
What is the coil voltage and type?
The BF0004D024 uses a DC coil rated at 24 V DC.
How many contacts does it have and what is their configuration?
It provides four auxiliary contacts, all normally closed (4NC), across four poles.
How can this relay be mounted?
It supports screw mounting or installation on a 35 mm DIN rail.
What are the key electrical ratings?
Ui is 690 V, Uimp is 6 kV, and Ith is 10 A.
What environmental conditions does it support?
Operating temperature is -50 to 70 °C, with max altitude 3000 m and pollution degree 3.
Safety note: Install and commission by qualified personnel only. Observe the specified terminal tightening torque (1.5 to 1.8 Nm) and do not exceed the stated electrical and environmental ratings or applicable IEC/EN standards.
| Manufacturer Part Number | BF0004D024 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975167755 |
| Coil Voltage | 24VDC |
