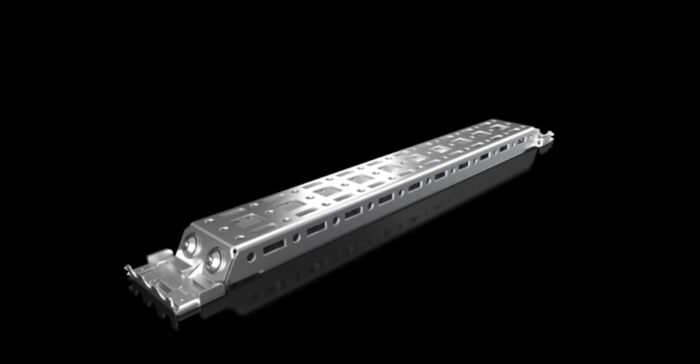

AX2394.350 Rittal AX Rail for interior installation, for D: 350 mm

Why Choose the Rittal AX 2394.350 Interior Installation Rail?

The Rittal AX 2394.350 is a versatile interior installation rail system designed for use within AX compact enclosures. It provides a flexible mounting solution for internal components, enabling efficient layout and organisation of electrical and automation equipment.

Engineered with a 25 mm pitch system hole pattern, this rail allows rapid installation of accessories such as system chassis, lighting, cable supports and switching components without the need for mechanical processing. This ensures faster assembly while maintaining enclosure integrity.

Designed specifically for enclosures with a depth of 350 mm, the AX 2394.350 is supplied as a 4-piece set, offering a reliable and modular solution for interior configuration in industrial control cabinets.

Key Advantages

• Provides flexible internal mounting within AX enclosures.
• No drilling required, preserving enclosure protection rating.
• Supports a wide range of accessories and system components.
• 25 mm pitch system for modular installation.
• High load capacity up to 100 N.
• Improves organisation and layout of control systems.

Key Features

• Interior mounting rail system for AX enclosures.
• Compatible with 350 mm enclosure depth.
• 25 mm pitch hole pattern for flexible mounting.
• Suitable for mounting on side, base and roof surfaces.
• Supports accessories such as system chassis, lights and cable holders.
• Tool-free installation using enclosure fixing points.
• Supplied as a 4-piece set.

Technical Specifications

• Manufacturer: Rittal
• Series: AX Enclosure Accessories
• Model: AX 2394.350
• Product type: Interior installation rail
• Material: Sheet steel
• Surface finish: Zinc-plated
• Enclosure compatibility: AX compact enclosures
• Suitable depth: 350 mm
• Load capacity: up to 100 N
• Mounting position: Side, roof or base
• Hole system: 25 mm pitch
• Supply: 4 rails with mounting accessories
• Weight: approx. 1.3 kg
• EAN: 4028177965713

Flexible Interior Configuration Without Modification

The AX 2394.350 allows components to be mounted directly onto integrated enclosure fixing points, eliminating the need for drilling or machining. This maintains the enclosure’s protection rating while significantly reducing installation time.

Its dual-row hole design enables flexible positioning of accessories, creating additional mounting space for system chassis, lighting, cable supports and control devices within the enclosure.

Typical Applications

• Industrial control panels and automation systems.
• Mounting of internal components in AX enclosures.
• Installation of lighting, cable management and accessories.
• Machine building and OEM control cabinets.
• Flexible enclosure configuration projects.

Trusted by Panel Builders Worldwide

Rittal AX accessory systems are widely trusted for enabling fast, flexible and professional enclosure configuration across industrial automation and control applications.
