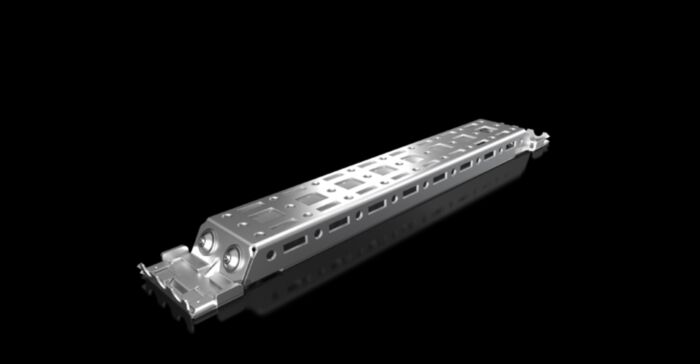

AX2394.300 Rittal AX Rail for interior installation, for D: 300 mm

Why Choose the Rittal AX 2394.300 Interior Installation Rail?

The Rittal AX 2394.300 is a versatile interior installation rail system designed for AX compact enclosures, providing a flexible and efficient solution for mounting internal components. It enables organised layout and secure fixing of accessories without requiring any enclosure modification.

Engineered with a 25 mm pitch system hole pattern, this rail allows fast installation of system components such as chassis, lighting, cable supports and switching devices. This modular design simplifies panel building while maintaining enclosure protection ratings.

Designed for enclosures with a depth of 300 mm, the AX 2394.300 is supplied as a 4-piece set, making it ideal for industrial control panels and automation systems requiring flexible internal configuration.

Key Advantages

• Provides flexible internal mounting within AX enclosures.
• No drilling required, preserving IP protection rating.
• Supports a wide range of accessories and system components.
• 25 mm pitch system for modular installation.
• High load capacity up to 100 N.
• Improves organisation and layout of control systems.

Key Features

• Interior mounting rail system for AX enclosures.
• Compatible with 300 mm enclosure depth.
• 25 mm pitch hole pattern for flexible mounting.
• Suitable for mounting on side, base and roof surfaces.
• Supports accessories such as system chassis, lighting and cable holders.
• Tool-free installation using enclosure fixing points.
• Supplied as a 4-piece set.

Technical Specifications

• Manufacturer: Rittal
• Series: AX Enclosure Accessories
• Model: AX 2394.300
• Product type: Interior installation rail
• Material: Sheet steel
• Surface finish: Zinc-plated
• Enclosure compatibility: AX compact enclosures
• Suitable depth: 300 mm
• Load capacity: up to 100 N
• Mounting position: Side, roof or base
• Hole system: 25 mm pitch
• Supply: 4 rails with mounting accessories
• Weight: approx. 1.14 kg
• EAN: 4028177965706

Flexible Interior Configuration Without Drilling

The AX 2394.300 allows components to be mounted directly onto integrated enclosure fixing points, eliminating the need for drilling or machining. This maintains enclosure integrity while significantly reducing installation time.

Its dual-row hole design creates additional mounting space for accessories such as enclosure lights, cable clamps, door switches and support rails, improving system organisation and accessibility.

Typical Applications

• Industrial control panels and automation systems.
• Mounting of internal components in AX enclosures.
• Installation of lighting, cable management and accessories.
• Machine building and OEM control cabinets.
• Flexible enclosure configuration projects.

Trusted by Panel Builders Worldwide

Rittal AX accessory systems are widely trusted by engineers for enabling fast, flexible and professional enclosure configuration in industrial automation environments.
