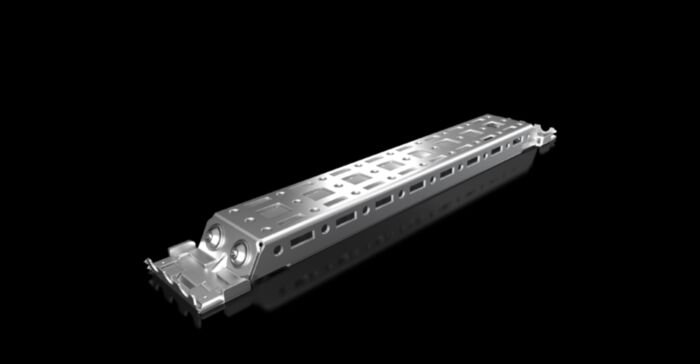

AX2394.250 Rittal AX Rail for interior installation, for D: 250 mm

Why Choose the Rittal AX 2394.250 Interior Installation Rail?

The Rittal AX 2394.250 is a flexible interior installation rail system designed for AX compact enclosures, enabling efficient mounting of internal components without modifying the enclosure. It provides a modular solution for organising electrical and automation systems inside control cabinets.

Engineered with a 25 mm pitch system hole pattern, this rail allows rapid installation of accessories such as system chassis, lighting, cable supports and switches. This eliminates the need for drilling, preserving the enclosure’s protection rating while reducing installation time.

Designed specifically for enclosures with a depth of 250 mm, the AX 2394.250 is supplied as a 4-piece set, making it ideal for compact control panels requiring flexible and scalable internal configuration.

Key Advantages

• Provides flexible internal mounting within AX enclosures.
• No drilling required, maintaining enclosure IP protection.
• Supports a wide range of accessories and components.
• 25 mm pitch system for modular installation.
• High load capacity up to 100 N.
• Improves layout and organisation of control systems.

Key Features

• Interior mounting rail system for AX enclosures.
• Compatible with 250 mm enclosure depth.
• 25 mm pitch hole pattern for flexible mounting.
• Mounting possible on side, base and roof areas.
• Supports accessories such as cable clamps, lights and system chassis.
• Tool-free installation using enclosure fixing points.
• Supplied as a 4-piece set.

Technical Specifications

• Manufacturer: Rittal
• Series: AX Enclosure Accessories
• Model: AX 2394.250
• Product type: Interior installation rail
• Material: Sheet steel
• Surface finish: Zinc-plated
• Enclosure compatibility: AX compact enclosures
• Suitable depth: 250 mm
• Load capacity: up to 100 N
• Mounting position: Side, roof or base
• Hole system: 25 mm pitch
• Supply: 4 rails with adaptor and assembly parts
• Weight: approx. 1.0 kg
• EAN: 4028177965690

Flexible Interior Configuration Without Drilling

The AX 2394.250 mounts directly onto integrated enclosure bosses, eliminating the need for mechanical processing. This preserves the enclosure protection category while significantly speeding up installation.

Its dual-row punching design creates additional mounting space for accessories such as cable clamp rails, enclosure lighting and support rails, improving system organisation and accessibility.

Typical Applications

• Industrial control panels and automation systems.
• Internal mounting of electrical components in AX enclosures.
• Installation of lighting, cable management and accessories.
• Machine building and OEM control cabinets.
• Compact enclosure configuration projects.

Trusted by Panel Builders Worldwide

Rittal AX accessory systems are widely trusted by engineers for enabling fast, flexible and professional enclosure configuration in industrial automation environments.
