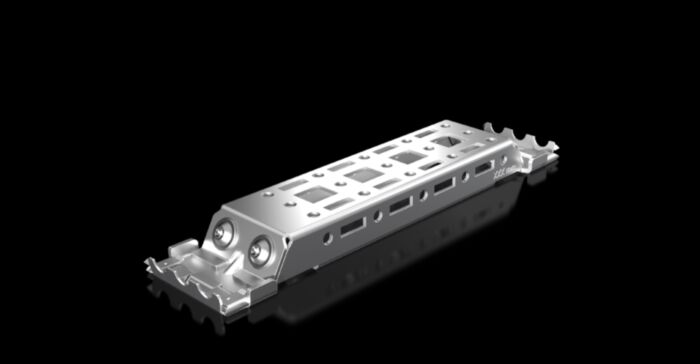

AX2394.210 Rittal AX Rail for interior installation, for D: 210 mm

Why Choose the Rittal AX 2394.210 Interior Installation Rail?

The Rittal AX 2394.210 is a compact and highly versatile interior installation rail system designed for AX enclosures, enabling flexible mounting of internal components without requiring any enclosure modification. It is ideal for creating structured, space-efficient layouts inside control cabinets.

Featuring a 25 mm pitch system punching, this rail allows rapid installation of accessories such as system chassis, lighting, cable supports and switching components. The tool-free mounting design preserves the enclosure’s protection rating while reducing installation time and complexity.

Designed specifically for enclosures with a depth of 210 mm, the AX 2394.210 is supplied as a 4-piece set, providing a complete and modular solution for compact industrial control panels and automation systems.

Key Advantages

• Provides flexible internal mounting within AX enclosures.
• No drilling required, maintaining enclosure protection rating.
• Supports a wide range of accessories and system components.
• 25 mm pitch system for modular configuration.
• High load capacity up to 100 N.
• Improves organisation and accessibility of internal components.

Key Features

• Interior mounting rail system for AX enclosures.
• Compatible with 210 mm enclosure depth.
• 25 mm pitch hole pattern for flexible mounting.
• Mounting possible on side, base and roof surfaces.
• Dual-row punching for increased mounting space.
• Tool-free installation using integrated enclosure locators.
• Supplied as a 4-piece set.

Technical Specifications

• Manufacturer: Rittal
• Series: AX Enclosure Accessories
• Model: AX 2394.210
• Product type: Interior installation rail
• Material: Sheet steel
• Surface finish: Zinc-plated
• Enclosure compatibility: AX compact enclosures
• Suitable depth: 210 mm
• Load capacity: up to 100 N
• Mounting position: Side, roof or base
• Hole system: 25 mm pitch
• Supply: 4 rails, adaptor and assembly parts
• Weight: approx. 0.9 kg
• EAN: 4028177965683

Fast Installation Without Enclosure Modification

The AX 2394.210 mounts directly onto integrated enclosure fixing points, eliminating the need for drilling or machining. This preserves the enclosure’s protection category while significantly speeding up installation.

Its dual-row hole pattern creates additional mounting space for components such as enclosure lighting, door switches, cable clamp rails and system chassis, improving flexibility and organisation within the cabinet.

Typical Applications

• Industrial control panels and automation systems.
• Internal mounting of components in AX enclosures.
• Installation of lighting, cable management and accessories.
• Machine building and OEM control cabinets.
• Compact enclosure configuration projects.

Trusted by Panel Builders Worldwide

Rittal AX interior mounting systems are widely trusted for enabling fast, flexible and professional enclosure configuration in industrial automation environments.
