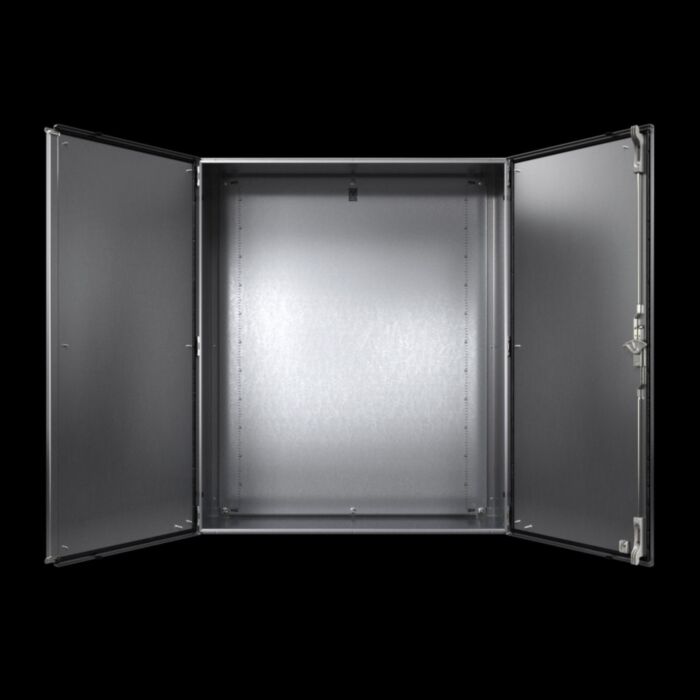

AX1019.000 Rittal AX Compact enclosure, WHD: 1000x1200x300 mm, stainless steel 1.4301

Why Choose the Rittal AX 1019.000 Stainless Steel Enclosure?

The Rittal AX 1019.000 is a high-performance stainless steel compact enclosure designed for industrial control and automation applications. Part of the advanced AX enclosure platform, it provides a robust, hygienic and corrosion-resistant housing solution for electrical components in demanding environments.

Manufactured from stainless steel 1.4301 (AISI 304), this enclosure is ideal for use in food processing, pharmaceuticals, outdoor installations and harsh industrial settings. Its integrated system design enables fast, tool-free installation of accessories without drilling, preserving enclosure integrity and reducing assembly time.

With dimensions of 1000 × 1200 × 300 mm and a two-door configuration, the AX 1019.000 provides generous internal space for mounting plates and components, making it suitable for large control panels and complex automation systems.

Key Advantages

• Robust stainless steel construction for corrosion resistance.
• Integrated locator system allows accessory mounting without drilling.
• Large enclosure size for complex control systems.
• Maintains enclosure integrity and protection rating.
• Designed for hygienic and industrial environments.
• Reliable protection for sensitive electrical equipment.

Key Features

• AX compact enclosure in stainless steel.
• Dimensions: 1000 × 1200 × 300 mm.
• Material: Stainless steel 1.4301 (AISI 304).
• Two-door design with approx. 130° opening angle.
• 3-point locking system with 3 mm double-bit insert.
• Mounting plate included (zinc-plated).
• Brushed finish for industrial and hygienic applications.

Technical Specifications

• Manufacturer: Rittal
• Series: AX Compact Enclosures
• Model: AX 1019.000
• Product type: Wall-mounted enclosure
• Material: Stainless steel 1.4301 (AISI 304)
• Surface finish: Brushed (grain 400)
• Dimensions (W × H × D): 1000 × 1200 × 300 mm
• Mounting plate size: approx. 945 × 1175 mm
• Number of doors: 2
• Locking system: 3-point lock, 3 mm double-bit
• Protection rating (IEC 60529): IP55
• NEMA rating: NEMA 12
• Impact resistance: IK10
• Weight: approx. 71–78 kg
• EAN: 4028177815056

Engineered for Industrial and Hygienic Environments

The AX 1019.000 enclosure is designed to protect electrical systems in environments where corrosion resistance and hygiene are critical. The stainless steel construction combined with a sealed PU gasket ensures reliable protection against dust, moisture and industrial contaminants.

Its integrated system platform allows rapid installation of rails, accessories and internal components without drilling, enabling flexible configuration and future upgrades with minimal effort.

Typical Applications

• Food and beverage processing environments.
• Pharmaceutical and cleanroom installations.
• Outdoor and harsh industrial locations.
• Automation and control panel systems.
• Energy and infrastructure installations.

Trusted by Engineers Worldwide

Rittal AX enclosures are widely trusted by industrial engineers and panel builders for delivering robust protection, flexible configuration and long-term reliability in demanding applications.
