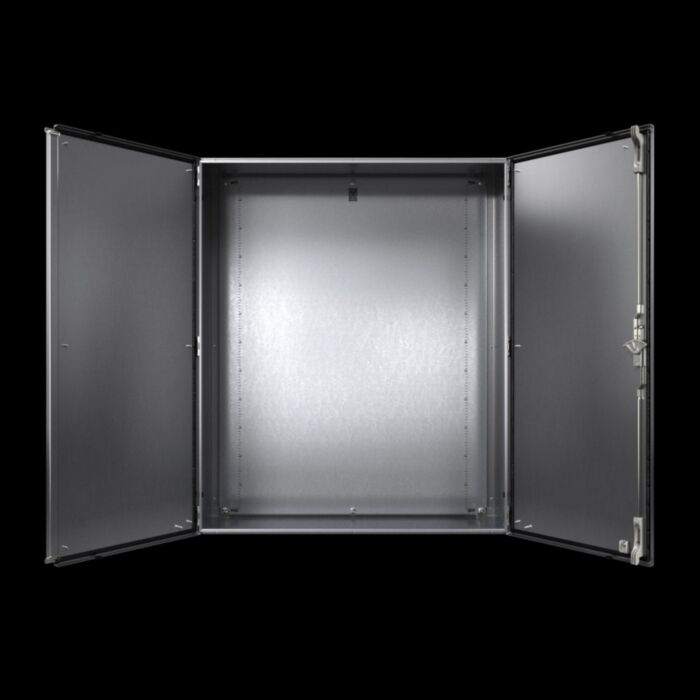

AX1017.000 Rittal AX Compact enclosure, WHD: 800x1200x300 mm, stainless steel 1.4301

Why Choose the Rittal AX 1017.000 Stainless Steel Enclosure?

The Rittal AX 1017.000 is a high-quality stainless steel compact enclosure engineered for industrial control and automation systems. As part of the advanced AX platform, it offers exceptional durability, corrosion resistance and flexible internal configuration for demanding environments.

Constructed from stainless steel 1.4301 (AISI 304), this enclosure is designed for use in harsh industrial and hygienic applications, including food processing, pharmaceuticals and outdoor installations. Its integrated enclosure locator system allows fast installation of accessories without drilling, preserving the enclosure’s protection rating.

With dimensions of 800 × 1200 × 300 mm and a single-door design, the AX 1017.000 provides ample internal space for mounting plates and components, making it ideal for control panels and automation systems requiring reliable protection and efficient layout.

Key Advantages

• Corrosion-resistant stainless steel construction for harsh environments.
• Tool-free internal configuration with integrated locator system.
• Maintains enclosure protection without drilling.
• Reliable protection against dust and moisture.
• Compact yet spacious design for industrial applications.
• Designed for hygienic and outdoor installations.

Key Features

• AX compact enclosure in stainless steel.
• Dimensions: 800 × 1200 × 300 mm.
• Material: Stainless steel 1.4301 (AISI 304).
• Single-door design with approx. 130° opening angle.
• 3-point locking system with 3 mm double-bit insert.
• Mounting plate included (zinc-plated).
• Brushed finish for industrial and hygienic environments.

Technical Specifications

• Manufacturer: Rittal
• Series: AX Compact Enclosures
• Model: AX 1017.000
• Product type: Wall-mounted enclosure
• Material: Stainless steel 1.4301 (AISI 304)
• Dimensions (W × H × D): 800 × 1200 × 300 mm
• Mounting plate size: approx. 745 × 1175 mm
• Number of doors: 1
• Locking system: 3-point lock, 3 mm double-bit
• Protection rating (IEC 60529): IP66
• NEMA rating: NEMA 4X / 12
• Impact resistance: IK10
• Weight: approx. 56–61 kg
• EAN: 4028177815032

Designed for Industrial and Hygienic Environments

The AX 1017.000 enclosure delivers reliable protection against dust, moisture and contaminants, thanks to its sealed PU gasket and robust stainless steel construction. This makes it suitable for demanding industrial applications where hygiene and corrosion resistance are critical.

Its integrated system platform allows rapid configuration and expansion using Rittal accessories, enabling engineers to install internal components quickly while maintaining enclosure integrity.

Typical Applications

• Industrial control panels and automation systems.
• Food and beverage processing environments.
• Pharmaceutical and cleanroom installations.
• Outdoor and corrosive industrial locations.
• Energy and infrastructure installations.

Trusted by Engineers Worldwide

Rittal AX enclosures are widely trusted by engineers and panel builders for delivering robust protection, flexible configuration and long-term reliability in industrial applications.
