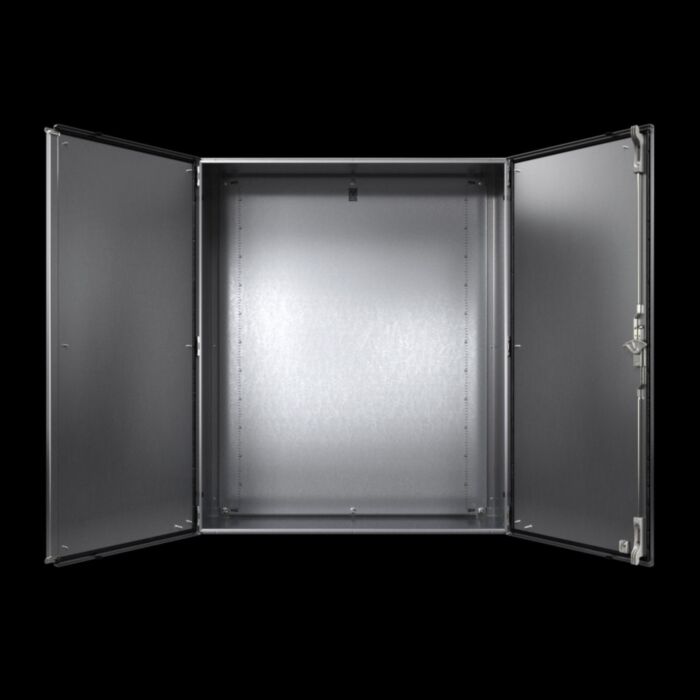

AX1016.000 Rittal AX Compact enclosure, WHD: 800x1000x300 mm, stainless steel 1.4301

Why Choose the Rittal AX 1016.000 Stainless Steel Enclosure?

The Rittal AX 1016.000 is a robust stainless steel compact enclosure designed for industrial control and automation applications requiring high levels of protection, durability and flexibility. As part of the advanced AX enclosure platform, it enables fast system configuration while maintaining full enclosure integrity.

Manufactured from stainless steel 1.4301 (AISI 304), this enclosure is ideal for harsh and hygienic environments such as food processing, pharmaceuticals and outdoor installations. Its integrated locator system allows internal components to be mounted without drilling, preserving the enclosure’s protection rating and reducing installation time.

With dimensions of 800 × 1000 × 300 mm and a single-door design, the AX 1016.000 provides a compact yet spacious solution for control panels and electrical installations requiring reliable protection and efficient layout.

Key Advantages

• Corrosion-resistant stainless steel construction for demanding environments.
• Tool-free internal configuration using integrated locator system.
• Maintains enclosure protection without drilling.
• High protection against dust and water ingress.
• Compact footprint with efficient internal space.
• Suitable for hygienic and industrial applications.

Key Features

• AX compact enclosure in stainless steel.
• Dimensions: 800 × 1000 × 300 mm.
• Material: Stainless steel 1.4301 (AISI 304).
• Single-door design with approx. 130° opening angle.
• Two cam locks with 3 mm double-bit insert.
• Mounting plate included (zinc-plated sheet steel).
• Brushed finish (grain 400) for industrial and hygienic use.

Technical Specifications

• Manufacturer: Rittal
• Series: AX Compact Enclosures
• Model: AX 1016.000
• Product type: Wall-mounted enclosure
• Material: Stainless steel 1.4301 (AISI 304)
• Surface finish: Brushed (grain 400)
• Dimensions (W × H × D): 800 × 1000 × 300 mm
• Mounting plate size: approx. 745 × 975 mm
• Number of doors: 1
• Locking system: Cam lock, 3 mm double-bit
• Protection rating (IEC 60529): IP66
• NEMA rating: NEMA 4X / 12
• Impact resistance: IK10
• Weight: approx. 50–53 kg
• EAN: 4028177815025

Designed for Harsh Industrial Environments

The AX 1016.000 enclosure provides reliable protection against dust, moisture and corrosive conditions thanks to its sealed PU gasket and stainless steel construction. This makes it suitable for applications where hygiene, durability and environmental resistance are critical.

The integrated system platform allows rapid installation of rails, accessories and internal components without mechanical modification, enabling flexible configuration and future expansion.

Typical Applications

• Industrial control panels and automation systems.
• Food and beverage processing environments.
• Pharmaceutical and cleanroom installations.
• Outdoor and corrosive industrial locations.
• Energy and infrastructure installations.

Trusted by Engineers Worldwide

Rittal AX enclosures are widely trusted by engineers and panel builders for delivering robust protection, flexible configuration and long-term reliability in demanding industrial environments.
