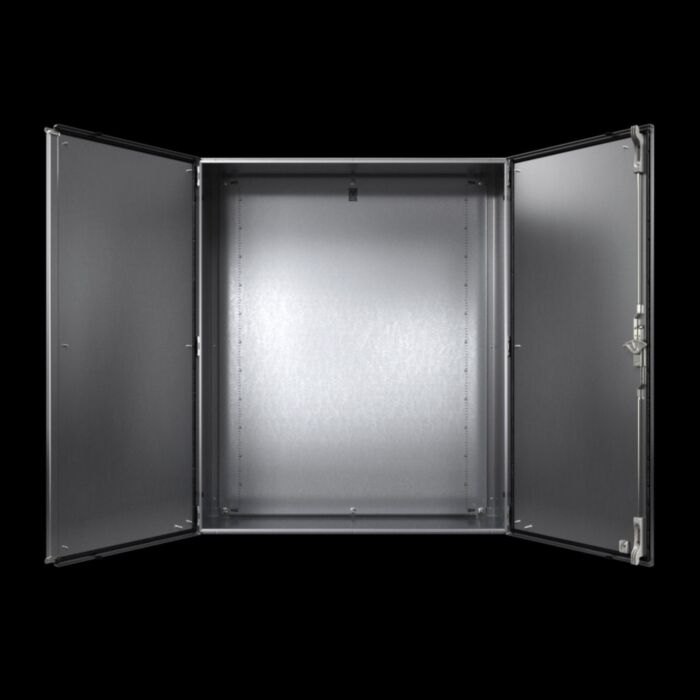

AX1015.000 Rittal AX Compact enclosure, WHD: 400x500x210 mm, stainless steel 1.4301

Why Choose the Rittal AX 1015.000 Stainless Steel Enclosure?

The Rittal AX 1015.000 is a compact and highly durable stainless steel enclosure designed for industrial control and automation applications. As part of the AX enclosure platform, it offers robust protection, flexible configuration and efficient installation for modern panel building.

Constructed from stainless steel 1.4301 (AISI 304), this enclosure is ideal for corrosive, hygienic and outdoor environments. The integrated locator system enables fast installation of internal components without drilling, preserving enclosure integrity and reducing assembly time.

With dimensions of 400 × 500 × 210 mm and a single-door configuration, the AX 1015.000 is perfectly suited for compact control panels and machine-level automation systems requiring reliable protection and efficient use of space.

Key Advantages

• Corrosion-resistant stainless steel construction for harsh environments.
• Tool-free internal configuration using integrated locator system.
• Maintains enclosure protection rating without drilling.
• Compact design ideal for machine-level control applications.
• Reliable protection against dust, water and contaminants.
• Suitable for hygienic and industrial environments.

Key Features

• AX compact enclosure in stainless steel.
• Dimensions: 400 × 500 × 210 mm.
• Material: Stainless steel 1.4301 (AISI 304).
• Single-door design with approx. 130° opening angle.
• Two cam locks with 3 mm double-bit insert.
• Mounting plate included (zinc-plated).
• Integrated 25 mm system pitch for modular accessories.

Technical Specifications

• Manufacturer: Rittal
• Series: AX Compact Enclosures
• Model: AX 1015.000
• Product type: Wall-mounted enclosure
• Material: Stainless steel 1.4301 (AISI 304)
• Surface finish: Brushed (grain 400)
• Dimensions (W × H × D): 400 × 500 × 210 mm
• Mounting plate size: approx. 350 × 475 mm
• Number of doors: 1
• Locking system: Cam lock, 3 mm double-bit
• Protection rating (IEC 60529): IP66
• NEMA rating: NEMA 4X / 12
• Impact resistance: IK10
• Weight: approx. 11–12 kg
• EAN: 4028177815124

Engineered for Industrial and Hygienic Use

The AX 1015.000 enclosure provides excellent protection against dust and water ingress thanks to its sealed PU gasket and robust construction. This makes it suitable for demanding industrial applications, including environments where hygiene and corrosion resistance are critical.

Its modular AX platform enables rapid installation of accessories such as rails, mounting systems and cable management solutions without mechanical modification, ensuring flexibility for future upgrades.

Typical Applications

• Machine-level control panels and automation systems.
• Food and beverage processing environments.
• Pharmaceutical and cleanroom installations.
• Outdoor and corrosive industrial locations.
• Energy and infrastructure systems.

Trusted by Engineers Worldwide

Rittal AX enclosures are widely trusted by engineers and panel builders for delivering reliable protection, flexible configuration and long-term performance in industrial applications.
