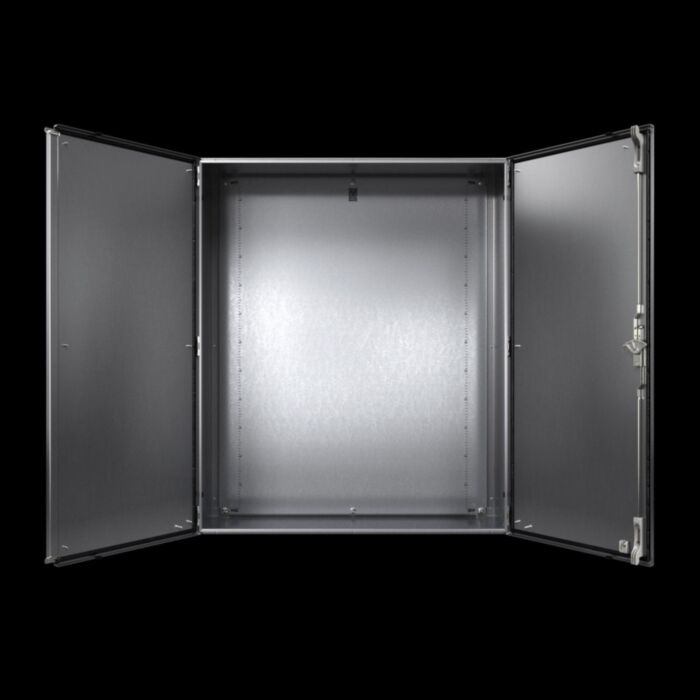

AX1014.000 Rittal AX Compact enclosure, WHD: 760x760x300 mm, stainless steel 1.4301

Why Choose the Rittal AX 1014.000 Stainless Steel Enclosure?

The Rittal AX 1014.000 is a compact and highly durable stainless steel enclosure designed for industrial control and automation systems. As part of the AX enclosure platform, it delivers reliable protection, flexible configuration and fast installation for modern panel building.

Constructed from stainless steel 1.4301 (AISI 304), this enclosure is ideal for harsh and hygienic environments such as food processing, pharmaceuticals and outdoor installations. Its integrated locator system allows accessories and components to be mounted without drilling, preserving enclosure integrity and reducing installation time.

With compact dimensions of 760 × 760 × 300 mm and a single-door configuration, the AX 1014.000 provides efficient internal space for mounting electrical components, making it suitable for machine-level control panels and industrial applications.

Key Advantages

• Corrosion-resistant stainless steel construction for demanding environments.
• Tool-free internal configuration with integrated locator system.
• Maintains enclosure protection rating without drilling.
• Compact design for efficient space utilisation.
• Reliable protection against dust, moisture and contaminants.
• Suitable for hygienic and industrial installations.

Key Features

• AX compact enclosure in stainless steel.
• Dimensions: 760 × 760 × 300 mm.
• Material: Stainless steel 1.4301 (AISI 304).
• Single-door design with approx. 130° opening angle.
• Two cam locks with 3 mm double-bit insert.
• Mounting plate included (zinc-plated sheet steel).
• Integrated 25 mm system pitch for modular accessories.

Technical Specifications

• Manufacturer: Rittal
• Series: AX Compact Enclosures
• Model: AX 1014.000
• Product type: Wall-mounted enclosure
• Material: Stainless steel 1.4301 (AISI 304)
• Surface finish: Brushed (grain 400)
• Dimensions (W × H × D): 760 × 760 × 300 mm
• Mounting plate size: approx. 705 × 735 mm
• Number of doors: 1
• Locking system: Cam lock, 3 mm double-bit
• Protection rating (IEC 60529): IP66
• NEMA rating: NEMA 4X / 12
• Impact resistance: IK10
• Weight: approx. 39–42 kg
• EAN: 4028177815018

Designed for Harsh Industrial Environments

The AX 1014.000 enclosure provides high protection against dust and water ingress thanks to its foamed-in PU gasket and sealed stainless steel construction. This ensures reliable operation in environments where hygiene and corrosion resistance are critical.

Its integrated system platform allows rapid installation of internal accessories without mechanical modification, enabling flexible configuration and easy future upgrades.

Typical Applications

• Machine-level control panels and automation systems.
• Food and beverage processing environments.
• Pharmaceutical and cleanroom installations.
• Outdoor and corrosive industrial locations.
• Energy and infrastructure systems.

Trusted by Engineers Worldwide

Rittal AX enclosures are widely trusted by engineers and panel builders for delivering robust protection, flexible configuration and long-term reliability in industrial environments.
