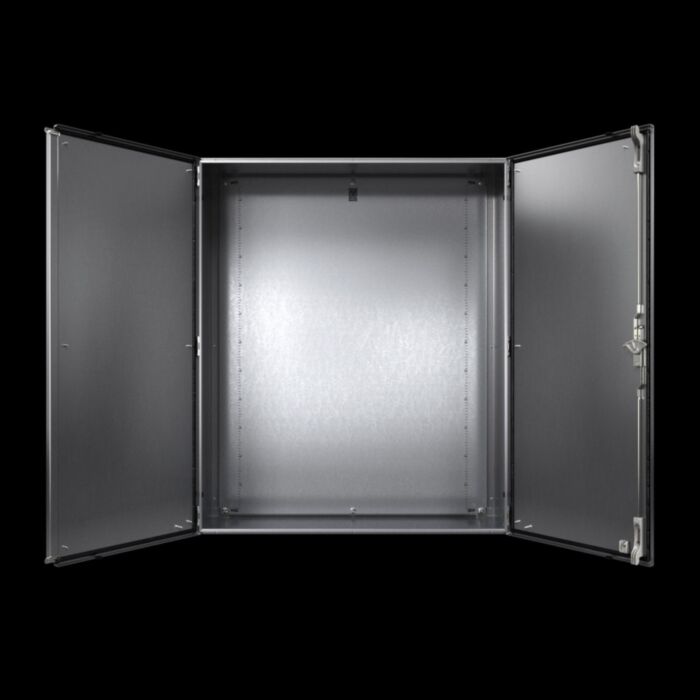

AX1013.000 Rittal AX Compact enclosure, WHD: 500x500x300 mm, stainless steel 1.4301

Why Choose the Rittal AX 1013.000 Stainless Steel Enclosure?

The Rittal AX 1013.000 is a compact and robust stainless steel enclosure designed for industrial control and automation applications. As part of the advanced AX enclosure platform, it delivers high protection levels, flexible internal configuration and fast installation for modern panel building.

Constructed from stainless steel 1.4301 (AISI 304), this enclosure is ideal for corrosive, hygienic and outdoor environments. Its integrated locator system allows components and accessories to be installed without drilling, maintaining the enclosure’s protection rating and significantly reducing installation time.

With compact dimensions of 500 × 500 × 300 mm and a single-door configuration, the AX 1013.000 is perfectly suited for machine-level control panels and small industrial systems requiring reliable protection and efficient use of space.

Key Advantages

• Corrosion-resistant stainless steel construction for harsh environments.
• Tool-free internal configuration using integrated locator system.
• Maintains enclosure protection rating without drilling.
• Compact design ideal for space-constrained installations.
• Reliable protection against dust, moisture and contaminants.
• Suitable for hygienic and industrial applications.

Key Features

• AX compact enclosure in stainless steel.
• Dimensions: 500 × 500 × 300 mm.
• Material: Stainless steel 1.4301 (AISI 304).
• Single-door design with approx. 130° opening angle.
• Two cam locks with 3 mm double-bit insert.
• Mounting plate included (zinc-plated sheet steel).
• Integrated 25 mm system pitch for modular accessories.

Technical Specifications

• Manufacturer: Rittal
• Series: AX Compact Enclosures
• Model: AX 1013.000
• Product type: Wall-mounted enclosure
• Material: Stainless steel 1.4301 (AISI 304)
• Surface finish: Brushed (grain 400)
• Dimensions (W × H × D): 500 × 500 × 300 mm
• Mounting plate size: approx. 450 × 475 mm
• Number of doors: 1
• Locking system: Cam lock, 3 mm double-bit
• Protection rating (IEC 60529): IP66
• NEMA rating: NEMA 4X / 12
• Impact resistance: IK10
• Weight: approx. 16 kg
• EAN: 4028177815131

Designed for Harsh Industrial Environments

The AX 1013.000 enclosure provides excellent protection against dust and water ingress thanks to its foamed-in PU gasket and sealed stainless steel construction. This ensures reliable operation in demanding environments where hygiene and corrosion resistance are critical.

Its modular AX platform supports rapid installation of internal accessories such as rails, cable supports and system components without mechanical modification, enabling flexible configuration and future expansion.

Typical Applications

• Machine-level control panels and automation systems.
• Food and beverage processing environments.
• Pharmaceutical and cleanroom installations.
• Outdoor and corrosive industrial locations.
• Small industrial control systems and OEM equipment.

Trusted by Engineers Worldwide

Rittal AX enclosures are widely trusted by engineers and panel builders for delivering robust protection, flexible configuration and long-term reliability in industrial environments.
