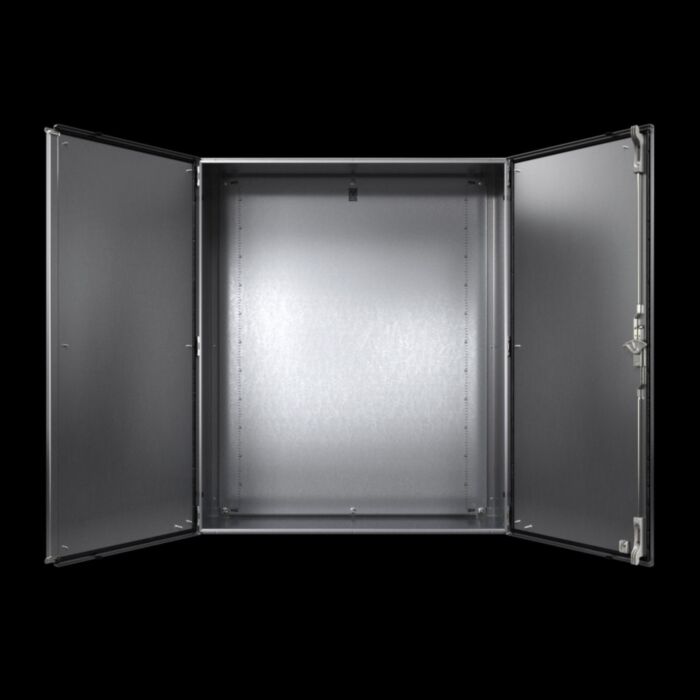

AX1012.000 Rittal AX Compact enclosure, WHD: 600x760x210 mm, stainless steel 1.4301

Why Choose the Rittal AX 1012.000 Stainless Steel Enclosure?

The Rittal AX 1012.000 is a high-quality stainless steel compact enclosure designed for industrial control and automation applications. As part of the AX enclosure platform, it delivers robust protection, efficient installation and flexible internal configuration for modern panel building.

Manufactured from stainless steel 1.4301 (AISI 304), this enclosure is ideal for corrosive, hygienic and outdoor environments. Its integrated locator system enables rapid mounting of internal components without drilling, maintaining the enclosure’s protection rating while significantly reducing installation time.

With dimensions of 600 × 760 × 210 mm and a single-door configuration, the AX 1012.000 offers an excellent balance between compact size and usable internal space, making it suitable for machine-level control panels and industrial installations.

Key Advantages

• Corrosion-resistant stainless steel construction for harsh environments.
• Tool-free internal configuration using integrated locator system.
• Maintains enclosure protection rating without drilling.
• Compact design with efficient internal mounting space.
• High protection against dust and water ingress.
• Suitable for hygienic and industrial applications.

Key Features

• AX compact enclosure in stainless steel.
• Dimensions: 600 × 760 × 210 mm.
• Material: Stainless steel 1.4301 (AISI 304).
• Single-door design with approx. 130° opening angle.
• Two cam locks with 3 mm double-bit insert.
• Mounting plate included (zinc-plated sheet steel).
• Integrated 25 mm system pitch for modular accessories.

Technical Specifications

• Manufacturer: Rittal
• Series: AX Compact Enclosures
• Model: AX 1012.000
• Product type: Wall-mounted enclosure
• Material: Stainless steel 1.4301 (AISI 304)
• Surface finish: Brushed (grain 400)
• Dimensions (W × H × D): 600 × 760 × 210 mm
• Mounting plate size: approx. 550 × 735 mm
• Number of doors: 1
• Locking system: Cam lock, 3 mm double-bit
• Protection rating (IEC 60529): IP66
• NEMA rating: NEMA 4X / 12
• Impact resistance: IK10
• Weight: approx. 28.5 kg
• EAN: 4028177815001

Designed for Harsh Industrial Environments

The AX 1012.000 enclosure offers reliable protection against dust, water and contaminants thanks to its foamed-in PU door seal and sealed stainless steel construction. This ensures consistent performance in demanding industrial and hygienic environments.

Its integrated system platform allows rapid installation of accessories and internal components without mechanical modification, enabling flexible configuration and future expansion while preserving enclosure integrity.

Typical Applications

• Machine-level control panels and automation systems.
• Food and beverage processing environments.
• Pharmaceutical and cleanroom installations.
• Outdoor and corrosive industrial locations.
• Industrial machinery and OEM equipment.

Trusted by Engineers Worldwide

Rittal AX enclosures are widely trusted by engineers and panel builders for delivering robust protection, flexible configuration and long-term reliability in industrial environments.
