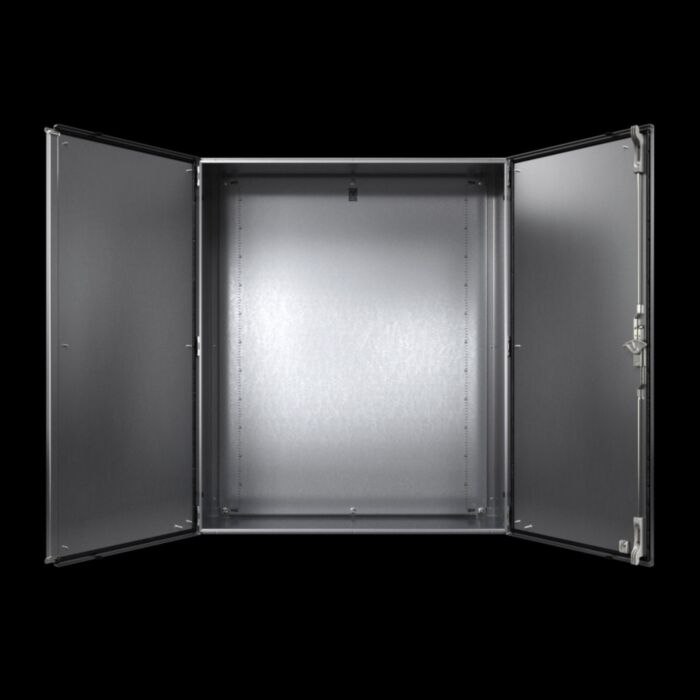

AX1011.000 Rittal AX Compact enclosure, WHD: 380x300x210 mm, stainless steel 1.4301

Why Choose the Rittal AX 1011.000 Stainless Steel Enclosure?

The Rittal AX 1011.000 is a compact and highly reliable stainless steel enclosure designed for industrial control and automation applications. As part of the AX enclosure platform, it delivers robust protection, flexible internal configuration and efficient installation in space-constrained environments.

Manufactured from stainless steel 1.4301 (AISI 304), this enclosure is ideal for corrosive, hygienic and outdoor environments. The integrated locator system enables rapid installation of internal components without drilling, preserving the enclosure’s protection rating while reducing assembly time.

With compact dimensions of 380 × 300 × 210 mm and a single-door configuration, the AX 1011.000 is perfectly suited for machine-level control panels, small automation systems and distributed control applications.

Key Advantages

• Corrosion-resistant stainless steel construction for harsh environments.
• Tool-free internal configuration using integrated locator system.
• Maintains enclosure protection rating without drilling.
• Compact design ideal for space-limited installations.
• High protection against dust and water ingress.
• Reliable housing for sensitive electrical components.

Key Features

• AX compact enclosure in stainless steel.
• Dimensions: 380 × 300 × 210 mm.
• Material: Stainless steel 1.4301 (AISI 304).
• Single-door design with approx. 130° opening angle.
• Cam lock with 3 mm double-bit insert.
• Mounting plate included (zinc-plated sheet steel).
• Integrated 25 mm system pitch for modular accessories.

Technical Specifications

• Manufacturer: Rittal
• Series: AX Compact Enclosures
• Model: AX 1011.000
• Product type: Wall-mounted enclosure
• Material: Stainless steel 1.4301 (AISI 304)
• Surface finish: Brushed
• Dimensions (W × H × D): 380 × 300 × 210 mm
• Mounting plate size: approx. 330 × 275 mm
• Number of doors: 1
• Locking system: Cam lock, 3 mm double-bit
• Protection rating (IEC 60529): IP66
• Impact resistance: IK10
• Weight: approx. 6–7 kg
• EAN: 4028177814998

Compact Protection for Industrial Environments

The AX 1011.000 enclosure provides excellent protection against dust, water and contaminants thanks to its foamed-in PU gasket and sealed stainless steel construction. This ensures reliable operation in demanding industrial and hygienic environments.

Its modular AX system platform allows rapid installation of accessories and internal components without mechanical modification, enabling flexible configuration and easy future upgrades.

Typical Applications

• Machine-level control panels and automation systems.
• Small industrial control installations.
• Food and beverage processing environments.
• Pharmaceutical and cleanroom applications.
• Outdoor and corrosive industrial locations.

Trusted by Engineers Worldwide

Rittal AX compact enclosures are widely trusted for delivering reliable protection, flexible configuration and long-term durability in industrial automation environments.
