AUX 1Q 250Vac/dc XT1...XT6

Why Choose the ABB 1SDA066422R1 AUX 1Q 250Vac/dc XT1...XT6 Auxiliary Contact?

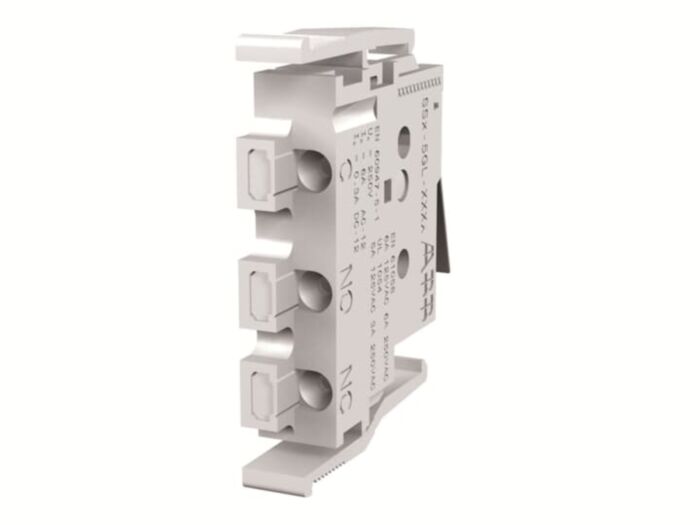

The ABB 1SDA066422R1, also known as the AUX 1Q 250Vac/dc XT1...XT6, is a genuine ABB auxiliary contact accessory designed for use with ABB SACE Tmax XT moulded case circuit breakers. It provides additional electrical signalling for breaker open and closed status in low-voltage switchgear, distribution boards and industrial control panels.

This ABB auxiliary contact includes 1 changeover contact for open-closed indication and is suitable for signalling circuits up to 250 V AC/DC. It helps connected control systems, alarm circuits, PLCs or monitoring equipment receive reliable feedback on the position of the compatible circuit breaker.

Designed for ABB Tmax XT1, XT2, XT3, XT4, XT5 and XT6 circuit breakers, the 1SDA066422R1 is ideal for panel builders, maintenance engineers and electrical contractors who require dependable breaker status indication in commercial and industrial electrical installations.

Key Advantages

• Genuine ABB SACE Tmax XT auxiliary contact accessory.
• Provides 1 changeover contact for open-closed indication.
• Suitable for signalling circuits up to 250 V AC/DC.
• Compatible with ABB Tmax XT1, XT2, XT3, XT4, XT5 and XT6 circuit breakers.
• Supports remote monitoring, control panel feedback and automation signalling.
• Compact accessory format for integration into low-voltage switchgear assemblies.

Key Features

• ABB SACE Tmax XT accessory range.
• AUX 1Q 250Vac/dc XT1...XT6 accessory type.
• 1Q contact arrangement.
• Open-closed breaker position indication.
• Changeover contact for flexible signalling circuit design.
• Designed for auxiliary monitoring and control circuits.
• Loose or configurable accessory format.
• Suitable for low-voltage moulded case circuit breaker applications.

Technical Specifications

• Manufacturer: ABB
• Series: SACE Tmax XT Accessories
• Model: AUX 1Q 250Vac/dc XT1...XT6
• Product ID: 1SDA066422R1
• Product type: Circuit breaker auxiliary contact accessory
• Product main type: Accessories for Tmax XT
• Suitable for: ABB Tmax XT1, XT2, XT3, XT4, XT5 and XT6
• Suitable product class: SACE Tmax XT
• Auxiliary contact configuration: 1 changeover contact for open-closed indication
• Number of auxiliary contacts CO / SPDT: 1
• Rated signalling voltage: less than 250 V AC/DC
• Technical configuration type: Loose or configurable
• Application: Circuit breaker position signalling and monitoring
• Order code US and Canada: KXTAAUX
• Standards: IEC 60947-2, UL 489
• Customs tariff number: 85389099
• Product net weight: 0.048 kg
• Package dimensions (W × H × D): approx. 110 × 60 × 140 mm
• Package gross weight: approx. 0.05 kg
• EAN: 8015644692643

Reliable Status Signalling for Tmax XT Circuit Breakers

Auxiliary contact accessories such as the ABB AUX 1Q 250Vac/dc XT1...XT6 are used to provide electrical feedback from circuit breakers to external control and monitoring systems. This allows operators and automation systems to identify whether a breaker is open or closed without needing to inspect the breaker manually.

The ABB 1SDA066422R1 helps improve system visibility in low-voltage switchgear, distribution boards and automated control panels. By adding open-closed position indication to compatible Tmax XT circuit breakers, it supports faster diagnostics, improved control feedback and more effective electrical system supervision.

Typical Applications

• ABB SACE Tmax XT circuit breaker assemblies.
• Low-voltage switchgear and distribution panels.
• Breaker open and closed status indication.
• Control panel signalling and monitoring circuits.
• PLC and automation system feedback circuits.
• Industrial maintenance, retrofit and panel building applications.

Trusted by Panel Builders and Electrical Engineers

ABB SACE Tmax XT accessories are widely used by panel builders, electrical engineers and maintenance professionals to improve circuit breaker monitoring, control panel signalling and low-voltage switchgear reliability.
