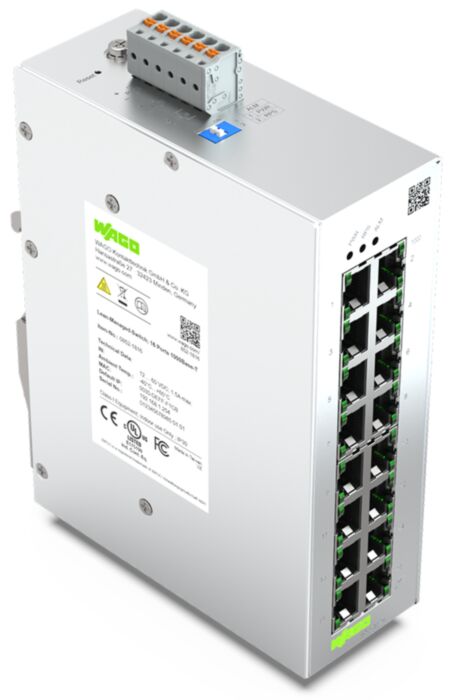

852-1816 Wago Lean Managed Switch;16 Ports 1000Base-T
MPN: 852-1816
Alt. SKU: 8521816
Special Price
£733.93
£611.61
Regular Price
£863.45
Why Choose the WAGO 852-1816 Lean Managed Switch?
The WAGO 852-1816 is a high-performance industrial lean managed Ethernet switch designed for demanding automation networks. It features sixteen 10/100/1000BASE-T RJ45 ports, offering reliable data transmission in a compact, DIN-rail mountable form factor. Its extended temperature range and rugged design ensure dependable operation in harsh industrial environments.
Technical Specifications
- Ports: 16 x 10/100/1000 Mbps RJ45
- Switching Method: Store-and-forward, non-blocking
- MAC Address Table: 8,000 entries
- Auto-Negotiation: Supported on all ports
- Auto MDI/MDI-X: Supported on all ports
- Power Supply: 12–60 V DC
- Power Consumption: Max. 12 W
- Operating Temperature: -40°C to +60°C
- Protection: IP30-rated metal housing
- Mounting: DIN-35 rail
- Dimensions: 50 mm (W) x 160 mm (H) x 120 mm (D)
- Weight: Approx. 780g
- Certifications: CE, RoHS compliant
Applications
Ideal for industrial automation, machine control networks, and process engineering systems requiring Gigabit speed and reliable data transmission. Its robust design and extended temperature range make it suitable for deployment in harsh industrial environments.
Frequently Asked Questions
- Is the WAGO 852-1816 plug-and-play?
- Does it support redundant power inputs?
- Can all ports be used simultaneously?
What Customers Say
"The WAGO 852-1816 offers reliable performance in our industrial network. Its compact design and extended temperature range are significant advantages." – Automation Engineer
Key Features of the WAGO 852-1816
- 16-port lean managed Ethernet switch with 10/100/1000 Mbps RJ45 ports
- Compact design suitable for DIN-rail mounting
- Extended operating temperature range: -40°C to +60°C
- Robust metallic housing with IP30 protection
- Advanced management: Web-based, SNMP, RMON
Comparison with Other Industrial Switches
Compared to other lean managed switches, the WAGO 852-1816 offers a higher port density, making it a preferred choice for industrial applications requiring multiple Gigabit connections in a compact form factor.
While it offers basic plug-and-play functionality, full utilization of its management features requires configuration.
Yes, it supports dual 12–60 V DC power inputs for redundancy.
Yes, all sixteen RJ45 ports can be used simultaneously for data transmission.
| Height | 234mm |
|---|---|
| Width | 185mm |
| Depth | 70mm |
| Barcode | 4066966072969 |
| Packed Quantity | 1 |
| RJ-45 Ports | 16 port 1000base-t |
| HS Code | 85176200 |
| Type of Ethernet Switch | Managed |
| Product Image | For Illustration Purposes Only |
| Country of Manufacture | Taiwan |
| Manufacturer | Wago |
| Manufacturer Part Number | 852-1816 |
| Alternative Product SKU | 8521816 |
