852-1417 Wago Industrial-ECO-Switch;5-port 1000Base-T;2-Slot 1000BASE-SX/LX

Why Choose the WAGO 852-1417 Industrial ECO Switch?

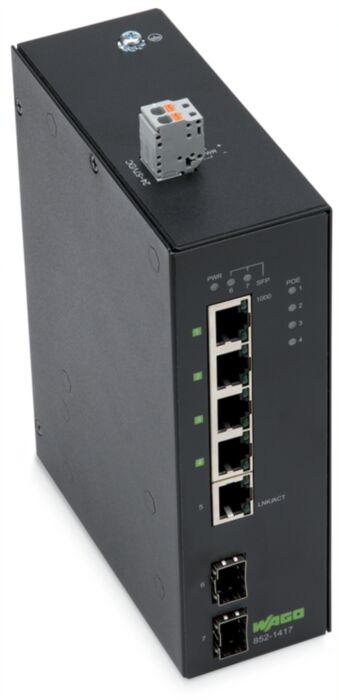

The WAGO 852-1417 is a robust, unmanaged industrial Ethernet switch featuring five 10/100/1000BASE-T RJ45 ports, four of which support Power over Ethernet Plus (PoE+) at 30 W. Additionally, it offers two SFP slots for 1000BASE-SX/LX modules, allowing for flexible fiber optic connectivity. Designed for high-performance automation networks, it provides reliable data transmission and power delivery in a compact, DIN-rail mountable form factor. Its extended temperature range ensures dependable operation in harsh industrial environments.

Technical Specifications

• Ports: 5 x 10/100/1000 Mbps RJ45, with 4 x PoE+ (IEEE 802.3at) supporting up to 30 W per port
• SFP Slots: 2 x 1000 Mbps for 1000BASE-SX/LX modules
• Switching Method: Store-and-forward, non-blocking
• MAC Address Table: 8,000 entries
• Auto-Negotiation: Supported on all ports
• Auto MDI/MDI-X: Supported on all ports
• Power Supply: 24–57 V DC
• Power Consumption: Max. 134 W (with full PoE load)
• Operating Temperature: -40°C to +70°C
• Protection: IP30-rated metal housing
• Mounting: DIN-35 rail
• Dimensions: 50 mm (W) x 160 mm (H) x 120 mm (D)
• Weight: Approx. 780g
• Certifications: CE, RoHS compliant

Applications

Ideal for industrial automation, machine control networks, and process engineering systems requiring Gigabit speed, reliable data transmission, and PoE+ capability. Its two SFP slots provide flexibility for fiber optic connections, making it suitable for applications where extended reach and high-speed communication are essential.

Frequently Asked Questions

• Is the WAGO 852-1417 plug-and-play?
• Does it support redundant power inputs?
• Can all PoE+ ports be used simultaneously?

What Customers Say

"The WAGO 852-1417 offers reliable performance in our industrial network. Its PoE+ capability, fiber optic flexibility, and extended temperature range are significant advantages." – Automation Engineer

Key Features of the WAGO 852-1417

• 5-port unmanaged Ethernet switch with 10/100/1000 Mbps RJ45 ports
• 4 x PoE+ ports (IEEE 802.3at) supporting up to 30 W per port
• 2 x SFP slots for 1000BASE-SX/LX modules
• Compact design suitable for DIN-rail mounting
• Extended operating temperature range: -40°C to +70°C
• Robust metallic housing with IP30 protection

Comparison with Other Industrial Switches

Compared to other unmanaged switches, the WAGO 852-1417 offers Gigabit speed, PoE+ capability, and flexible fiber optic connectivity, making it a preferred choice for industrial applications requiring reliable data transmission, power delivery, and extended reach in harsh environments.
