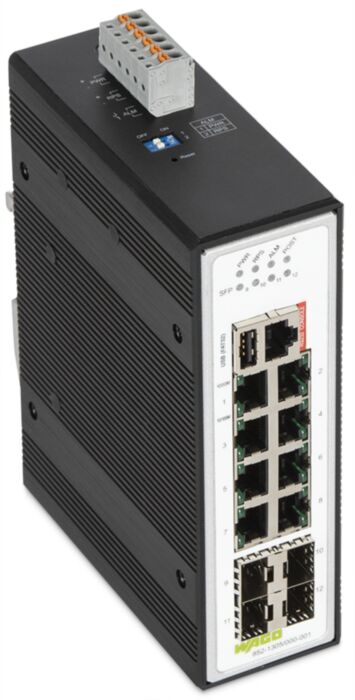

852-1305/000-001 Wago Industrial Managed Switch;8 Ports 1000Base-T;4-Slot 1000BASE-SX/LX;black metallic
MPN: 852-1305/000-001
Alt. SKU: 8521305000001
Special Price
£1,091.32
£909.43
Regular Price
£1,283.90
Why Choose the WAGO 852-1305/000-001 Industrial Managed Switch?
The WAGO 852-1305/000-001 is a high-performance industrial managed Ethernet switch designed for demanding applications requiring robust network management and high-speed data transmission. It features eight 10/100/1000BASE-T RJ45 ports and four 1000BASE-SX/LX SFP slots, allowing for flexible network configurations and fiber optic connectivity. Its rugged design ensures reliable operation in harsh industrial environments.
Technical Specifications
- Ports: 8 x 10/100/1000 Mbps RJ45 ports; 4 x 1000 Mbps SFP slots for 1000BASE-SX/LX modules
- Switching Method: Store-and-forward, non-blocking
- MAC Address Table: 8,000 entries
- Auto-Negotiation: Supported on all ports
- Auto MDI/MDI-X: Supported on all ports
- Management: Web-based interface, SNMP v1/v2c/v3, RMON, CLI
- Redundancy: Xpress Ring (<50 ms recovery), RSTP, MSTP, ERPS (ITU-T G.8032 v1/v2)
- VLAN Support: IEEE 802.1Q, up to 4,096 VIDs
- Power Supply: 12–48 V DC (redundant inputs)
- Alarm Relay: DIP-switch configurable fault detection
- Operating Temperature: -40°C to +70°C
- Mounting: DIN-35 rail
- Protection: IP30-rated metal housing
- Dimensions: 50 mm (W) x 162 mm (H) x 120 mm (D)
- Weight: Approx. 910g
- Certifications: IEC 61850-3 for energy market applications
- Diagnostics: Modbus® and SNMP; firmware updates and configuration via USB storage medium
Applications
Ideal for industrial automation, control panels, and machinery networks requiring reliable Gigabit Ethernet connectivity and advanced network management. Its robust design and redundant power inputs make it suitable for critical applications requiring high availability.
Frequently Asked Questions
- Is the WAGO 852-1305/000-001 plug-and-play?
- Does it support redundant power inputs?
- Can I use different types of SFP modules?
What Customers Say
"The WAGO 852-1305/000-001 offers the reliability and management features we need in our industrial network. Its fiber connectivity options are a significant advantage." – Network Administrator
Key Features of the WAGO 852-1305/000-001
- 8-port managed Ethernet switch with 4 SFP slots for 1000BASE-SX/LX
- Advanced management: Web-based, SNMP, RMON, CLI
- Redundant 12–48 V DC power inputs
- Alarm relay for fault detection
- VLAN support and rapid spanning tree protocol
- Robust metallic housing suitable for DIN-rail mounting
- Operating temperature range: -40°C to +70°C
- IEC 61850-3 certification for energy market applications
Comparison with Other Industrial Switches
Compared to other managed switches, the WAGO 852-1305/000-001 offers enhanced flexibility with its SFP slots for fiber connections and comprehensive management features, making it a preferred choice for industrial applications requiring extended reach and high reliability.
While it offers basic plug-and-play functionality, full utilization of its management features requires configuration.
Yes, it supports dual 12–48 V DC power inputs for redundancy.
Yes, the SFP slots support various 1000BASE-SX/LX modules, including multi-mode and single-mode options, depending on your network requirements.
| Height | 240mm |
|---|---|
| Width | 183mm |
| Depth | 64mm |
| Barcode | 4055143898133 |
| Packed Quantity | 1 |
| RJ-45 Ports | 8 port 1000base-t |
| HS Code | 85176200 |
| SFP Slots | 4 Slots 1000Base-SX/LX |
| Type of Ethernet Switch | Managed |
| Country of Manufacture | Taiwan |
| Manufacturer | Wago |
| Manufacturer Part Number | 852-1305/000-001 |
| Alternative Product SKU | 8521305000001 |
