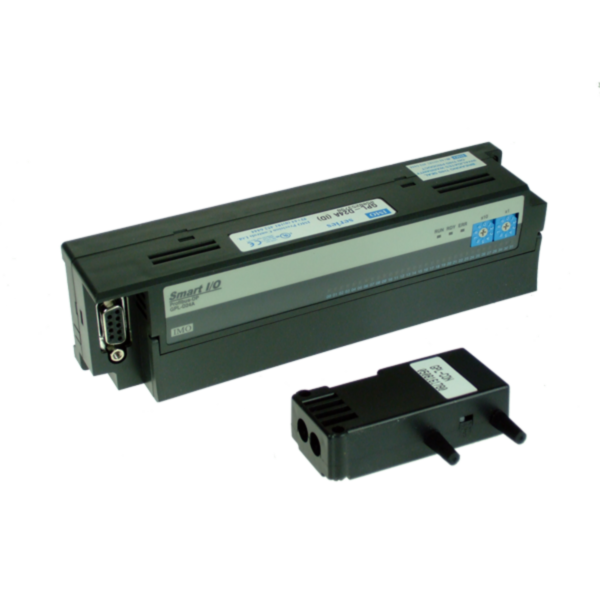

imo gpl-d24a plc smart i/o 20.4-28.8vdc
MPN: GPL-D24A
Alt. SKU: GPLD24A
Why Choose the IMO GPL-D24A 32-Channel Digital Input Module?
The GPL-D24A Smart I/O module provides 32 opto-isolated digital inputs and integrates seamlessly into Profibus-DP networks. Designed for 20.4–28.8 V DC operation, it offloads sensor acquisition from central controllers, simplifying wiring and enabling high-speed, deterministic I/O across distributed control panels.
Key Features of the GPL-D24A Digital Input Module
- 32 Digital Inputs: Opto-isolated, sink-type channels supporting 19–28 V DC signals.
- Profibus-DP Interface: Supports standard DP-V0 communication at up to 12 Mbps.
- Low Input Current: 7 mA per channel to minimize power consumption.
- DIN-Rail Mount: Compact 176.6 × 50 × 39 mm footprint.
- Temperature Range: 0 °C to +50 °C operating, –25 °C to +70 °C storage.
- Diagnostics: LED indicators for power, network, and individual input status.
How to Install the IMO GPL-D24A Module
Mount the GPL-D24A onto a 35 mm DIN rail in your control cabinet. Wire 20.4–28.8 V DC to the power terminals, then connect each field device to the input screw terminals. Plug your Profibus DP cable into the module’s B9 connector, set the station address via the rotary switch, and power on. Verify input and network connectivity through the module’s LEDs.
IMO GPL-D24A – 32-Channel Profibus-DP Smart I/O Module
The GPL-D24A delivers high-density digital input expansion for Profibus DP networks, offering opto-isolated protection against noise and ground loops. Its fast response times and high input count make it ideal for large-scale sensor monitoring on production lines, material handling systems, and remote control panels.
Built with industrial-grade components, the module’s rugged housing withstands harsh environments, while the integrated diagnostics simplify commissioning and troubleshooting.
Frequently Asked Questions About the GPL-D24A
- Which sensors can I connect to the inputs?
- What Profibus baud rates are supported?
- How is the Profibus address set?
- Can I hot-swap the module?
- How are input faults indicated?
Key Benefits:
- Consolidates 32 inputs in a single module.
- Opto-isolation for robust noise immunity.
- High-speed Profibus DP communication.
- LED diagnostics for rapid fault detection.
Applications:
- Sensor networks in manufacturing
- Remote input expansion in control panels
- Material handling and packaging machinery
- Large-scale distributed I/O systems
Frequently Asked Questions
You can connect any 24 V DC sink-type device, such as proximity sensors, limit switches, and pushbuttons.
The module supports standard Profibus DP baud rates: 9.6 kbps up to 12 Mbps.
Use the onboard rotary switch to select a unique station address (0–99) before powering on.
No. For safe operation, power down the Profibus segment before removal or insertion.
Fault conditions light the channel LED red and the PROFIBUS status LED flashes to highlight network errors.
