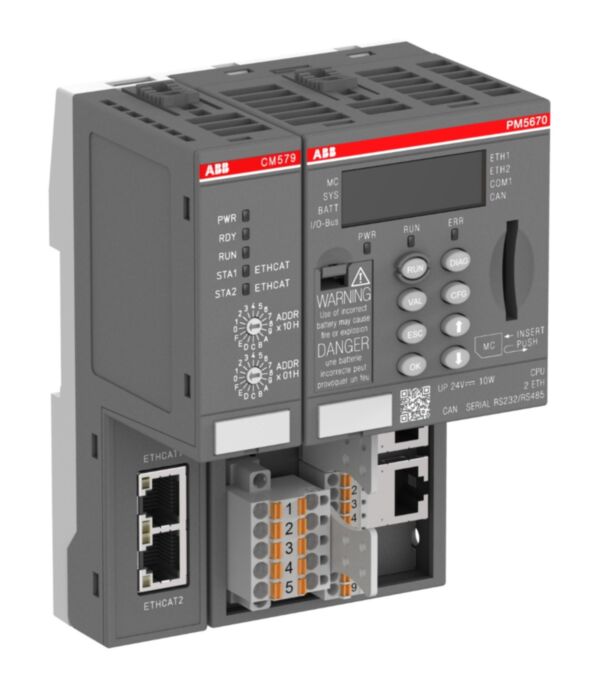

1SAP151000R8379 ABB PM5670-MC-EIP-KIT AC500,Machine Control

Why Choose the ABB 1SAP151000R8379 PM5670-MC-EIP-KIT AC500 Motion Control Kit?

The ABB 1SAP151000R8379 PM5670-MC-EIP-KIT is a complete AC500 V3 motion control controller kit designed for high-performance machine automation, robotics, synchronised motion systems and advanced industrial networking applications. Combining ABB's flagship PM5670-2ETH processor with EtherCAT motion control technology and EtherNet/IP motion control software, this kit provides a ready-to-deploy platform for demanding automation projects.

At the core of the system is the PM5670-2ETH processor module featuring 160 MB memory, dual Ethernet interfaces, integrated RS-232/RS-485 communications, CAN networking and a built-in display. The included CM579-ETHCAT EtherCAT Master module enables high-speed deterministic motion control, while the PS5611-MC-EIP runtime licence provides advanced EtherNet/IP motion control functionality.

Supplied as a complete engineering package, the PM5670-MC-EIP-KIT reduces integration complexity, simplifies procurement and accelerates machine commissioning for OEMs, machine builders and automation integrators.

Key Advantages

• Complete AC500 motion control solution.
• Includes CPU, communication module and software licence.
• 160 MB high-performance processor memory.
• Dual Ethernet communication interfaces.
• Integrated EtherCAT Master functionality.
• EtherNet/IP motion control support.
• Reduces engineering and integration time.
• Ideal for robotics and multi-axis machine control.

Key Features

• Model: PM5670-MC-EIP-KIT
• Order Code: 1SAP151000R8379
• Complete AC500 V3 motion controller kit.
• Includes PM5670-2ETH CPU.
• Includes CM579-ETHCAT EtherCAT Master module.
• Includes TB5610-ETH terminal base.
• Includes PS5611-MC-EIP runtime licence.
• 160 MB memory capacity.
• Dual Ethernet interfaces.
• Integrated CAN and serial communications.
• Integrated display and diagnostics.
• Motion control ready architecture.

Technical Specifications

• Manufacturer: ABB
• Series: AC500 V3
• Model: PM5670-MC-EIP-KIT
• Order Number: 1SAP151000R8379
• Product Type: Motion Control Controller Kit
• Processor Module: PM5670-2ETH
• Memory Capacity: 160 MB
• User Data Memory: Approx. 820,500 kB RAM
• Ethernet Interfaces: 2 × RJ45
• Serial Communication: RS-232 / RS-485
• CAN Interface: Integrated
• Communication Module: CM579-ETHCAT EtherCAT Master
• Terminal Base: TB5610-ETH
• Runtime Licence: PS5611-MC-EIP
• Supply Voltage: 20.4 to 28.8 V DC
• Rated Voltage: 24 V DC
• Protection Rating: IP20
• Dimensions (W × H × D): 180 × 110 × 250 mm
• Weight: 0.363 kg

Kit Contents

• 1 × PM5670-2ETH AC500 V3 processor module.
• 1 × CM579-ETHCAT EtherCAT Master communication module.
• 1 × TB5610-ETH terminal base.
• 1 × PS5611-MC-EIP PLCopen Motion Control and EtherNet/IP runtime licence.

Advanced Motion Control Performance

The PM5670-MC-EIP-KIT is engineered for applications requiring precise synchronisation, deterministic communications and real-time machine control. The integrated EtherCAT Master capability enables high-speed communication with servo drives, distributed I/O and motion devices, supporting complex multi-axis automation systems.

Powered by ABB's flagship PM5670 processor platform, the kit combines substantial memory resources with advanced networking functionality. This allows machine builders to develop scalable automation architectures that support motion control, industrial communications and Industry 4.0 integration requirements within a single controller platform.

Typical Applications

• Multi-axis motion control systems.
• Industrial robotics.
• Packaging machinery.
• Material handling equipment.
• Assembly automation.
• Production line synchronisation.
• OEM machine building.
• Advanced manufacturing systems.

Trusted by Motion Control Specialists

The ABB PM5670-MC-EIP-KIT combines the performance of the PM5670-2ETH controller with EtherCAT Master communications and EtherNet/IP motion control functionality, providing a complete platform for advanced machine automation and synchronised motion applications.
