1SAP141000R8379 ABB PM5650-MC-EIP-KIT AC500,Machine Control

Why Choose the ABB 1SAP141000R8379 PM5650-MC-EIP-KIT AC500 Controller Kit?

The ABB 1SAP141000R8379 PM5650-MC-EIP-KIT is a complete AC500 motion control controller kit designed to simplify the deployment of advanced automation and motion control applications. The kit combines a powerful AC500 PLC processor, EtherCAT master communication module, terminal base and motion control software licence into a single package, providing a ready-to-deploy solution for machine builders, OEMs and industrial automation engineers.

At the heart of the kit is the PM5650-2ETH processor module, featuring 80 MB memory, dual Ethernet interfaces, integrated RS-232/RS-485 communications, CAN networking and an onboard display. The included CM579-ETHCAT communication module enables EtherCAT master functionality, while the supplied motion control software package provides EtherNet/IP-based motion control capability.

By combining hardware and software components into a single order code, the PM5650-MC-EIP-KIT reduces engineering effort, simplifies procurement and accelerates commissioning of sophisticated motion control systems.

Key Advantages

• Complete AC500 motion control solution.
• Includes PLC CPU, communication module and software.
• 80 MB processor memory.
• Dual Ethernet communications.
• Integrated EtherCAT master capability.
• Supports EtherNet/IP motion control applications.
• Reduces system integration effort.
• Ideal for advanced machine automation.

Key Features

• Model: PM5650-MC-EIP-KIT
• Order Code: 1SAP141000R8379
• Complete AC500 controller kit.
• Includes PM5650-2ETH processor module.
• Includes CM579-ETHCAT communication module.
• Includes TB5610-ETH terminal base.
• Includes PS5611-MC-EIP motion control software.
• 80 MB controller memory.
• Dual Ethernet interfaces.
• Integrated CAN and serial communications.
• Motion control ready architecture.
• Compatible with ABB Automation Builder.

Technical Specifications

• Manufacturer: ABB
• Series: AC500
• Model: PM5650-MC-EIP-KIT
• Order Number: 1SAP141000R8379
• Product Type: Motion Control Controller Kit
• Processor: PM5650-2ETH
• Memory Capacity: 80 MB
• Ethernet Interfaces: 2 × RJ45
• Serial Communication: RS-232 / RS-485
• CAN Interface: Integrated
• Communication Module: CM579-ETHCAT EtherCAT Master
• Terminal Base: TB5610-ETH
• Software Included: PS5611-MC-EIP
• Programming Software: ABB Automation Builder
• Supply Voltage: 24 V DC
• Mounting: DIN Rail
• Kit Weight: Approximately 0.363 kg

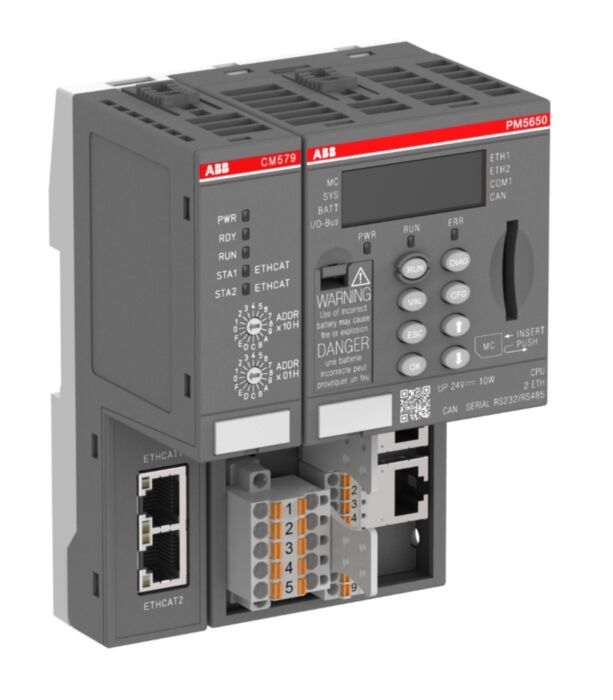

Kit Contents

• 1 × PM5650-2ETH processor module.
• 1 × CM579-ETHCAT EtherCAT master communication module.
• 1 × TB5610-ETH terminal base.
• 1 × PS5611-MC-EIP motion control software package.

Optimised for Motion Control Applications

The PM5650-MC-EIP-KIT provides all essential components required for high-performance motion control applications. The combination of EtherCAT master functionality and EtherNet/IP motion control software enables precise synchronisation of drives, motors and machine axes while maintaining the flexibility of the AC500 automation platform.

Its modular architecture supports expansion with additional communication and I/O modules, making it suitable for packaging machinery, material handling systems, robotics, assembly equipment and other advanced automation projects requiring coordinated motion control.

Typical Applications

• Motion control systems.
• Packaging machinery.
• Material handling equipment.
• Assembly automation.
• Robotics integration.
• OEM machine development.
• Industrial production systems.
• High-speed automation applications.

Trusted by Motion Control Engineers

The ABB PM5650-MC-EIP-KIT delivers a complete motion control platform combining powerful AC500 processing, EtherCAT networking and EtherNet/IP motion software, helping engineers reduce development time and accelerate machine commissioning.
