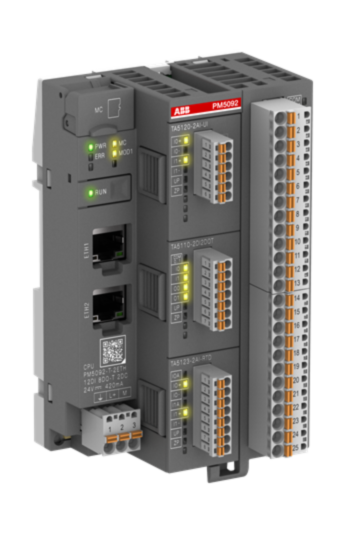

1SAP125400R0173 ABB PM5092-MC-KIT-EC AC500,Machine Control. Kit PM5092-T-2ETH+MC+ ETHCAT Runtime license,spring term.,Pack. Unit: 1 piece

Why Choose the ABB 1SAP125400R0173 PM5092-MC-KIT-EC AC500 Machine Control Kit?

The ABB 1SAP125400R0173 PM5092-MC-KIT-EC is a high-performance AC500-eCo V3 Machine Control Kit designed for advanced motion control, machine automation and industrial networking applications. Combining the powerful PM5092-T-2ETH PLC processor with an integrated PLCopen Motion Control and EtherCAT runtime licence, this complete package enables machine builders and OEMs to develop sophisticated automation systems while reducing engineering and commissioning time.

The kit includes a PM5092-T-2ETH processor module featuring 24 MB memory, 12 digital inputs, 8 transistor outputs, 2 configurable digital I/O channels and dual Ethernet interfaces. Together with the included motion control runtime licence, the platform delivers high-speed deterministic communication and precise synchronisation for demanding machine control applications.

Supplied as a complete ABB machine control package, the PM5092-MC-KIT-EC simplifies procurement and integration while maintaining full compatibility with ABB Automation Builder and the AC500-eCo V3 ecosystem.

Key Advantages

• Complete AC500-eCo V3 machine control solution.
• Includes PLCopen Motion Control runtime licence.
• Integrated EtherCAT communication functionality.
• 24 MB controller memory.
• Dual Ethernet communication interfaces.
• 12 digital inputs and 8 transistor outputs onboard.
• Three option board expansion slots.
• Reduces development and commissioning time.

Key Features

• Model: PM5092-MC-KIT-EC
• Order Code: 1SAP125400R0173
• AC500-eCo V3 machine control kit.
• Includes PM5092-T-2ETH processor module.
• Includes PS5611-MC-EC-e runtime licence.
• PLCopen Motion Control functionality.
• Integrated EtherCAT communication support.
• 24 MB memory capacity.
• 12 digital inputs.
• 8 transistor outputs.
• 2 configurable digital I/O channels.
• Dual Ethernet interfaces.

Technical Specifications

• Manufacturer: ABB
• Series: AC500-eCo V3
• Model: PM5092-MC-KIT-EC
• Order Number: 1SAP125400R0173
• Product Type: Machine Control Kit
• Processor Module: PM5092-T-2ETH
• Application Memory: 24 MB
• User Data Memory: 9100 kB RAM
• Digital Inputs: 12 × 24 V DC
• Digital Outputs: 8 × 24 V DC transistor outputs, 0.5 A
• Configurable Digital I/O: 2 × 24 V DC
• Ethernet Interfaces: 2 × RJ45
• Option Board Slots: 3
• Supply Voltage: 20.4 to 28.8 V DC
• Rated Voltage: 24 V DC
• Controller Processing Time: 0.000005 ms
• Dimensions (W × H × D): 180 × 110 × 250 mm
• Weight: 0.363 kg
• Protection Rating: IP20

Kit Contents

• 1 × PM5092-T-2ETH processor module (1SAP124700R0173).
• 1 × TA5212-TSPF terminal block set.
• 1 × PS5611-MC-EC-e PLCopen Motion Control and EtherCAT runtime licence.

Designed for Advanced Motion Control Applications

The PM5092-MC-KIT-EC is engineered for applications requiring precise machine synchronisation, coordinated motion control and real-time industrial communications. The included EtherCAT runtime licence enables high-speed communication with servo drives, distributed I/O systems and motion devices, making the kit suitable for demanding automation projects.

The PM5092-T-2ETH processor delivers enhanced performance with 24 MB memory, dual Ethernet ports, integrated RTC functionality and support for optional expansion boards. This allows engineers to create scalable automation architectures while maintaining the compact footprint of the AC500-eCo platform.

Typical Applications

• Machine automation.
• Motion control systems.
• Packaging machinery.
• Material handling equipment.
• Industrial robotics.
• Assembly automation.
• Production line synchronisation.
• OEM machine development.

Trusted by Machine Builders and Automation Engineers

The ABB PM5092-MC-KIT-EC combines high-performance AC500-eCo V3 processing, PLCopen Motion Control and EtherCAT communication into a single integrated platform, helping engineers accelerate machine development while maintaining exceptional control performance.
