1SAP125300R0173 ABB PM5082-MC-KIT-EC-EIP AC500,Mach.Control. Kit PM5082-T-2ETH+MC+ ETHCAT+EIP Runtime license,spring term.,Pack. Unit: 1 piece

Why Choose the ABB 1SAP125300R0173 PM5082-MC-KIT-EC-EIP AC500 Machine Control Kit?

The ABB 1SAP125300R0173 PM5082-MC-KIT-EC-EIP is a high-performance AC500-eCo V3 Machine Control Kit that combines a powerful PLC processor with integrated PLCopen Motion Control, EtherCAT and EtherNet/IP runtime functionality. Designed for demanding machine automation, motion control and industrial networking applications, the kit provides a complete and scalable platform for OEMs, machine builders and system integrators.

The kit is built around the PM5082-T-2ETH processor module, featuring 8 MB application memory, 12 digital inputs, 8 transistor outputs, 2 configurable digital I/O channels and dual Ethernet interfaces. Combined with integrated EtherCAT and EtherNet/IP runtime licences, the system delivers advanced machine synchronisation, motion control and industrial communication capabilities.

By combining hardware, terminal accessories and runtime software into a single package, the PM5082-MC-KIT-EC-EIP simplifies procurement, reduces engineering effort and accelerates commissioning while maintaining full compatibility with ABB Automation Builder and the AC500-eCo V3 platform.

Key Advantages

• Complete AC500-eCo V3 machine control solution.
• Includes PLCopen Motion Control runtime licence.
• Integrated EtherCAT and EtherNet/IP functionality.
• 8 MB application memory.
• Dual Ethernet communication interfaces.
• 12 digital inputs and 8 transistor outputs onboard.
• Three option board expansion slots.
• Reduces integration and commissioning time.

Key Features

• Model: PM5082-MC-KIT-EC-EIP
• Order Code: 1SAP125300R0173
• AC500-eCo V3 machine control kit.

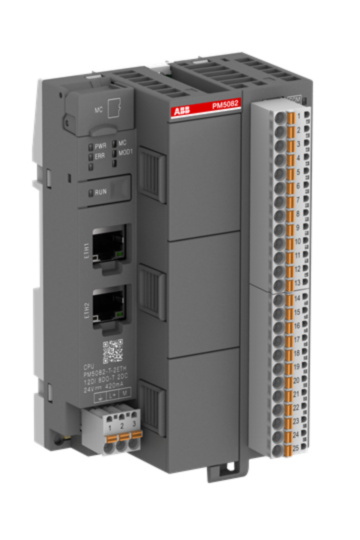

• Includes PM5082-T-2ETH processor module.
• Includes PLCopen Motion Control runtime licence.
• Includes EtherCAT runtime functionality.
• Includes EtherNet/IP runtime functionality.
• 8 MB memory capacity.
• 12 digital inputs.
• 8 transistor outputs.
• 2 configurable digital I/O channels.
• Dual Ethernet interfaces.

Technical Specifications

• Manufacturer: ABB
• Series: AC500-eCo V3
• Model: PM5082-MC-KIT-EC-EIP
• Order Number: 1SAP125300R0173
• Product Type: Machine Control Kit
• Processor Module: PM5082-T-2ETH
• Application Memory: 8 MB
• User Data Memory: Approx. 9100 kB RAM
• Digital Inputs: 12 × 24 V DC
• Digital Outputs: 8 × 24 V DC transistor outputs, 0.5 A
• Configurable I/O: 2 × Digital I/O
• Ethernet Interfaces: 2 × RJ45
• Option Board Slots: 3
• Rated Voltage: 24 V DC
• Supply Voltage: 20.4 to 28.8 V DC
• Processing Time: 0.00001 ms
• Dimensions (W × H × D): 180 × 110 × 250 mm
• Weight: 0.363 kg

Kit Contents

• 1 × PM5082-T-2ETH processor module (1SAP124600R0173).
• 1 × terminal block set.
• 1 × PLCopen Motion Control runtime licence.
• Integrated EtherCAT runtime functionality.
• Integrated EtherNet/IP runtime functionality.

Designed for High-Performance Motion Applications

The PM5082-MC-KIT-EC-EIP is engineered for machine builders requiring coordinated motion control, deterministic communications and advanced industrial networking. EtherCAT support enables high-speed communication with servo drives and distributed I/O devices, while EtherNet/IP connectivity simplifies integration into modern industrial Ethernet environments.

With onboard I/O, dual Ethernet interfaces and support for expansion modules, the controller platform can be scaled to support a wide range of machine automation projects while maintaining a compact footprint and streamlined architecture.

Typical Applications

• Machine automation.
• Motion control systems.
• Industrial robotics.
• Packaging machinery.
• Material handling equipment.
• Assembly automation.
• Production line synchronisation.
• OEM machine development.

Trusted by Machine Builders and Automation Specialists

The ABB PM5082-MC-KIT-EC-EIP combines AC500-eCo V3 processing power, PLCopen Motion Control, EtherCAT networking and EtherNet/IP connectivity into a single integrated platform, helping engineers develop advanced automation systems with reduced development and commissioning time.
