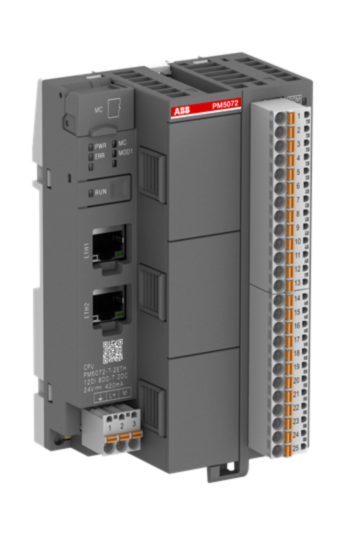

1SAP125100R0173 ABB PM5072-MC-KIT-EC-EIP AC500,Mach.Control. Kit PM5072-T-2ETH+MC+ ETHCAT+EIP Runtime license,spring term.,Pack. Unit: 1 piece

Why Choose the ABB 1SAP125100R0173 PM5072-MC-KIT-EC-EIP AC500 Machine Control Kit?

The ABB 1SAP125100R0173 PM5072-MC-KIT-EC-EIP is a complete AC500-eCo V3 machine control kit that combines a powerful PLC processor, motion control functionality, EtherCAT capability and EtherNet/IP communications into a single integrated package. Designed for OEM machine builders and industrial automation engineers, the kit provides a fast and cost-effective route to implementing advanced motion control systems.

Built around the PM5072-T-2ETH processor module, the kit includes 8 MB memory, 12 digital inputs, 8 transistor outputs, 2 configurable digital I/O channels and dual Ethernet interfaces. It also includes motion control and EtherCAT/EtherNet/IP runtime functionality, making it ideal for synchronised machine automation and industrial networking applications.

Supplied as a complete solution, the PM5072-MC-KIT-EC-EIP reduces engineering effort, simplifies commissioning and ensures compatibility across the ABB AC500-eCo V3 automation platform.

Key Advantages

• Complete machine control and motion control solution.
• Includes EtherCAT and EtherNet/IP runtime functionality.
• 8 MB application memory.
• Dual Ethernet communication interfaces.
• Integrated digital I/O.
• Three option board expansion slots.
• Reduces system integration complexity.
• Compatible with ABB Automation Builder.

Key Features

• Model: PM5072-MC-KIT-EC-EIP
• Order Code: 1SAP125100R0173
• AC500-eCo V3 machine control kit.
• Includes PM5072-T-2ETH processor.
• Includes EtherCAT runtime licence.
• Includes EtherNet/IP runtime licence.
• 8 MB controller memory.
• 12 digital inputs.
• 8 transistor outputs.
• 2 configurable digital I/O channels.
• 2 Ethernet interfaces.
• 3 option board slots.

Technical Specifications

• Manufacturer: ABB
• Series: AC500-eCo V3
• Model: PM5072-MC-KIT-EC-EIP
• Order Number: 1SAP125100R0173
• Product Type: Machine Control Kit
• Processor Module: PM5072-T-2ETH
• Memory Size: 8 MB
• User Data Memory: 9100 kB RAM
• Digital Inputs: 12 × 24 V DC
• Digital Outputs: 8 × 24 V DC Transistor Outputs, 0.5 A
• Configurable Digital I/O: 2 × DI/DO
• Ethernet Interfaces: 2 × RJ45
• Option Board Slots: 3
• Rated Voltage: 24 V DC
• Supply Voltage: 20.4 to 28.8 V DC
• Controller Processing Time: 0.00002 ms
• Dimensions (W × H × D): 180 × 110 × 250 mm
• Weight: 0.363 kg

Kit Contents

• 1 × PM5072-T-2ETH processor module.
• 1 × TA5212-TSPF terminal block set.
• 1 × PS5611-MC-EC-EIP-e motion control runtime licence.
• Integrated EtherCAT and EtherNet/IP motion control functionality.

Designed for Advanced Machine Automation

The PM5072-MC-KIT-EC-EIP is specifically engineered for machine builders requiring high-speed control, coordinated motion and industrial networking within a compact automation platform. The integrated EtherCAT and EtherNet/IP runtime capabilities support communication with servo drives, distributed I/O and supervisory control systems.

With onboard digital I/O, dual Ethernet connectivity and expansion capability, the controller can support a wide range of machine automation applications while remaining scalable for future upgrades. The integrated motion control environment helps reduce development time and accelerate commissioning.

Typical Applications

• Machine automation.
• Motion control systems.
• Packaging machinery.
• Material handling equipment.
• Assembly automation.
• Industrial robotics.
• OEM machine development.
• Production line synchronisation.

Trusted by Machine Builders Worldwide

The ABB PM5072-MC-KIT-EC-EIP delivers a complete motion control platform with integrated EtherCAT and EtherNet/IP functionality, helping engineers build high-performance automation systems with reduced development and commissioning time.
