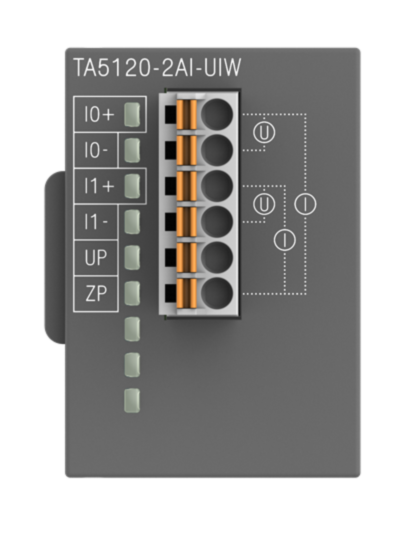

1SAP187100R0201 ABB TA5120-2AI-UIW 2 AI analog input channels U/I, 0 … 10V/0 … 20mA, 6 pole spring/cable front term. 3.50 mm pitch, Wide temperature range.

Why Choose the ABB TA5120-2AI-UIW Analogue Input Option Board?

The ABB 1SAP187100R0201 TA5120-2AI-UIW is a compact and highly reliable analogue input option board designed for ABB AC500-eCo programmable logic controllers. It expands controller functionality by providing two additional analogue input channels capable of processing both voltage and current signals, making it ideal for industrial automation, process monitoring and machine control applications.

As part of the ABB AC500-eCo automation platform, the TA5120-2AI-UIW offers a simple and cost-effective solution for increasing analogue signal capacity without requiring large expansion modules. The board integrates directly into compatible controllers and features spring terminals for fast, secure and reliable installation.

With 2 analogue inputs supporting voltage and current signals, 12-bit resolution and a wide temperature design, the TA5120-2AI-UIW is ideally suited to applications requiring accurate process measurement and monitoring in demanding industrial environments.

Key Advantages

• Compact analogue input expansion board for AC500-eCo PLCs.
• 2 analogue inputs supporting voltage and current signals.
• 12-bit resolution for accurate signal processing.
• Wide temperature version for demanding industrial environments.
• Spring terminal connections included.
• Simple integration with compatible AC500-eCo controllers.
• Reliable ABB industrial automation performance.

Key Features

• ABB TA5120-2AI-UIW analogue input option board.
• 2 analogue input channels.
• Supports voltage and current input signals.
• 12-bit analogue resolution.
• Wide temperature (W) version.
• Compatible with ABB AC500-eCo PLCs.
• Spring terminal technology.
• Compact internal option-board design.
• Designed for industrial automation systems.

Technical Specifications

• Manufacturer: ABB
• Series: AC500-eCo Accessories
• Model: TA5120-2AI-UIW
• Product ID: 1SAP187100R0201
• Product type: Analogue input option board
• Analogue inputs: 2
• Input signal types: Voltage (U) and Current (I)
• Resolution: 12 Bit
• Terminal type: Spring terminals
• Compatible platform: ABB AC500-eCo PLC
• Mounting type: Internal option board
• Protection rating: IP20
• Dimensions (H × W × D): 42 × 28.5 × 54.2 mm
• Weight: approx. 0.015 kg

Accurate Analogue Signal Acquisition for Industrial Automation

Analogue input modules such as the ABB TA5120-2AI-UIW enable PLC systems to monitor continuous process variables including temperature, pressure, flow, level and other sensor measurements. By supporting both voltage and current signals, the module provides excellent flexibility for a wide range of industrial instrumentation applications.

Its 12-bit resolution allows accurate signal acquisition and process monitoring, helping engineers optimise machine performance, improve process control and increase overall system efficiency. The wide temperature design further enhances reliability in demanding industrial environments.

Typical Applications

• Industrial process monitoring.
• Machine automation systems.
• Temperature and pressure measurement.
• Flow and level monitoring.
• OEM machinery and equipment.
• Industrial control panels.
• Manufacturing automation projects.

Trusted by Automation Engineers Worldwide

ABB AC500-eCo analogue expansion modules provide precise signal acquisition and dependable performance, helping automation engineers implement accurate monitoring and control systems across a wide range of industrial applications.
