UAG-XKP125 – Unitronics UniStream IO Exp.Kit 1.25m+P.Sup

Why Choose the Unitronics UAG-XKP125 Local Expansion Adapter Kit?

The Unitronics UAG-XKP125 is a high-performance short-range local expansion adapter kit with integrated power supply designed for the UniStream automation platform. It enables UniStream controllers to connect additional Uni-I/O modules located elsewhere within a control panel, providing greater flexibility for machine builders and industrial automation engineers.

As part of the advanced Unitronics UniStream expansion accessory range, the UAG-XKP125 includes an embedded power supply that allows significantly more expansion modules to be connected compared with non-powered adapter models. This makes it ideal for larger automation systems requiring increased I/O capacity while maintaining reliable communication and simplified panel layouts.

Featuring a 1.25 metre expansion cable, support for up to 16 Uni-I/O modules, and DIN rail mounting capability, the UAG-XKP125 provides a scalable solution for expanding UniStream installations. The integrated power supply accepts 12 or 24 V DC input, ensuring dependable operation in demanding industrial environments.

Key Advantages

• Integrated power supply for expanded I/O capacity.
• Supports up to 16 Uni-I/O modules.
• 1.25 metre cable length for flexible panel design.
• Designed specifically for UniStream local I/O expansion.
• Reliable communication between controller and expansion modules.
• DIN rail mounting for easy installation.
• Suitable for OEM machinery and industrial automation systems.

Key Features

• Unitronics UniStream expansion adapter kit.
• Model: UAG-XKP125.
• Integrated power supply.
• 125 cm (1.25 m) expansion cable.
• Supports up to 16 Uni-I/O modules.
• Short-range local expansion adapter.
• RJ45 communication connection.
• DIN rail mounting design.
• Compatible with UniStream controllers featuring DIN rail structures.
• Supports daisy-chaining of local expansion adapters.

Technical Specifications

• Manufacturer: Unitronics
• Series: UniStream Expansion Accessories
• Model: UAG-XKP125
• Product type: Powered local expansion adapter kit
• Expansion type: Short-range local I/O expansion
• Cable length: 125 cm (1.25 m)
• Supported modules: Up to 16 Uni-I/O modules
• Input voltage: 12 / 24 V DC
• Permissible voltage range: 10.2 to 28.8 V DC
• Maximum current consumption: 0.9 A @ 12 V DC, 0.5 A @ 24 V DC
• Connection type: RJ45 communication connection
• Mounting type: DIN rail mounting
• Operating temperature: -20°C to +55°C
• Storage temperature: -30°C to +70°C
• Compliance: CE, UL, EAC
• Standards: IEC 60068-2-6, IEC 60068-2-27

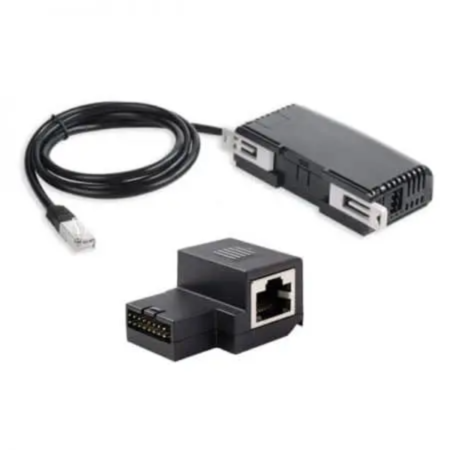

• Kit contents: Base unit, end unit and connecting cable

Powered Expansion for Larger UniStream Systems

The UAG-XKP125 allows automation engineers to expand UniStream systems beyond the limitations of standard controller-powered I/O configurations. The integrated power supply enables support for up to 16 Uni-I/O modules regardless of modules already connected directly to the controller.

This adapter is particularly valuable in larger control cabinets where additional I/O capacity is required. It simplifies wiring, improves panel organisation and supports scalable automation architectures through local expansion and adapter daisy-chaining capabilities.

Typical Applications

• Industrial automation systems.
• Machine building and OEM equipment.
• Packaging machinery.
• Material handling systems.
• Manufacturing production lines.
• Process control applications.
• Large control panel installations.
• Distributed I/O architectures.

Trusted by Automation Engineers Worldwide

Unitronics UniStream expansion solutions are trusted by machine builders and industrial automation professionals for delivering scalable, reliable and flexible I/O expansion across a wide range of manufacturing and process control applications.
