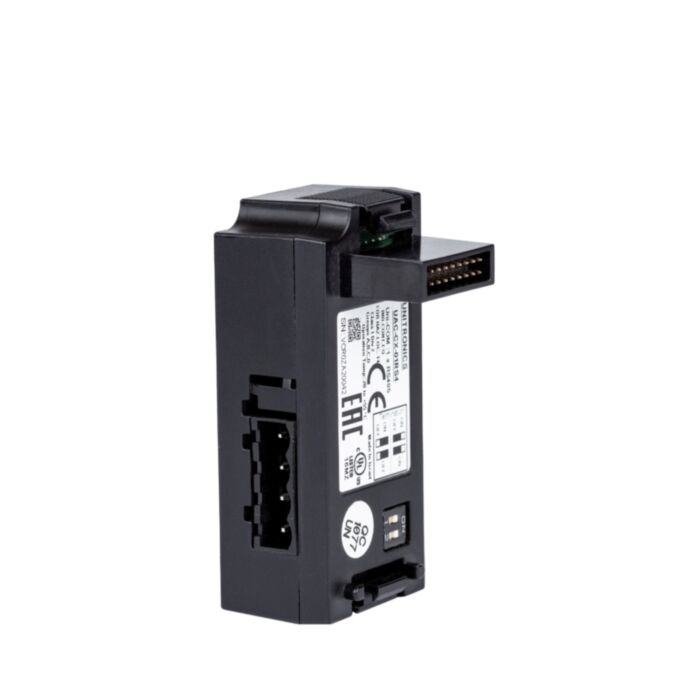

UAC-CX-01RS4 Unitronics UniStream CX Com 1xRS485
MPN: UAC-CX-01RS4
Alt. SKU: UACCX01RS4
Special Price
£39.28
£32.73
Regular Price
£46.20
Why Choose the Unitronics UAC-CX-01RS4 RS485 Communication Module?
The Unitronics UAC-CX-01RS4 is a compact RS485 communication expansion module designed for the Unitronics UniStream PLC platform. It enables UniStream built-in controllers to communicate with industrial devices and field networks using the widely adopted RS485 serial communication standard.
This Uni-COM CX module snaps directly onto compatible UniStream controllers, including the US5, US7 and US10 series. Once installed, it provides a galvanically isolated RS485 interface that supports multi-drop communication networks commonly used in industrial automation systems.
The module is frequently used to connect PLCs with drives, remote I/O modules, sensors and other automation equipment using protocols such as Modbus RTU. It also supports long communication distances and multi-node networks, making it suitable for distributed control systems across factories and production lines.
Key Features
- RS485 communication module for Unitronics UniStream PLC systems.
- Provides 1 × isolated RS485 port.
- 4-pin terminal block connection for industrial wiring.
- Supports multi-drop networks with up to 32 nodes.
- Communication speeds from 1,200 to 115,200 bps.
- Maximum communication distance up to 1,200 m using shielded twisted-pair cable.
- DIP switch selectable termination for RS485 network configuration.
- Compact plug-in module designed for UniStream built-in controllers.
Technical Specifications
- Manufacturer: Unitronics
- Model: UAC-CX-01RS4
- Series: Uni-COM CX communication modules
- Device type: RS485 communication expansion module
- Communication interface: RS485
- Connector: 4-pin terminal block
- Voltage limits: −7 to +12 V DC (common + differential)
- Baud rate range: 1,200 – 115,200 bps
- Maximum nodes: up to 32 devices
- Maximum cable length: up to 1,200 m (4,000 ft)
- Cable type: shielded twisted pair compliant with EIA-RS485
- Isolation voltage: 500 VAC for 1 minute
- Compatible PLC platform: UniStream built-in PLC models (US5, US7, US10)
- Protection rating: IP20 / NEMA 1
- Operating temperature: −20 °C to +55 °C
- Mounting: snap-on plug-in communication module
Typical Applications
- Modbus RTU communication with industrial devices.
- Connecting PLCs to variable speed drives and servo controllers.
- Distributed automation networks using RS485.
- Industrial instrumentation and data acquisition systems.
- Machine automation requiring multi-drop serial communication.
Frequently Asked Questions
What is the Unitronics UAC-CX-01RS4 used for?
The UAC-CX-01RS4 is an RS485 communication module that allows UniStream PLC controllers to communicate with industrial devices over RS485 networks.
Which PLC systems are compatible with this module?
The module is designed for UniStream built-in PLC models such as the US5, US7 and US10 series that support Uni-COM CX modules.
How many devices can connect to the RS485 network?
The RS485 interface supports multi-drop networks with up to approximately 32 devices.
What communication speeds are supported?
The module supports serial communication speeds ranging from 1,200 to 115,200 bits per second.
What cable should be used for RS485 communication?
Shielded twisted-pair cable compliant with the EIA-RS485 standard is recommended for reliable communication.
Trusted by Automation Engineers
Unitronics Uni-COM CX modules allow UniStream PLC systems to integrate with serial field networks, enabling robust and scalable communication for modern automation systems.
| Packed Quantity | 1 |
|---|---|
| Manufacturer | Unitronics |
| Manufacturer Part Number | UAC-CX-01RS4 |
| Alternative Product SKU | UACCX01RS4 |
