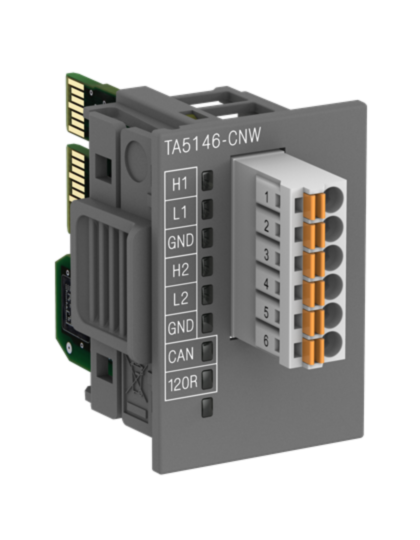

1SAP187300R0205 ABB TA5146-CNW AC500, CAN serial interface adapter, Option board, 1xCAN-bus isolated, Spring terminals, Wide temperature

Why Choose the ABB TA5146-CNW CAN Serial Interface Adapter?

The ABB 1SAP187300R0205 TA5146-CNW is a compact and highly reliable CAN serial interface adapter option board designed for ABB AC500-eCo programmable logic controllers. It provides an isolated CAN-bus communication interface, enabling seamless integration with industrial CAN networks, distributed automation systems and machine control applications. As part of the ABB AC500-eCo accessory range, the module delivers dependable communication performance in demanding industrial environments.

The TA5146-CNW offers a cost-effective solution for expanding controller communication capabilities without requiring larger communication modules. Its compact option-board architecture integrates directly with compatible AC500-eCo CPUs, simplifying installation while conserving valuable control panel space.

Featuring 1 isolated CAN-bus interface, spring terminal connections and a wide temperature design, the TA5146-CNW is ideally suited to industrial automation systems requiring robust and reliable CAN communication.

Key Advantages

• Compact CAN communication expansion board.
• 1 isolated CAN-bus interface for reliable industrial networking.
• Designed specifically for ABB AC500-eCo controllers.
• Wide temperature version for demanding environments.
• Spring terminal connections included.
• Simple option-board installation.
• Reliable ABB industrial automation performance.

Key Features

• ABB TA5146-CNW CAN serial interface adapter.
• 1 CAN-bus communication interface.
• CAN isolated communication.
• Wide temperature (W) version.
• Spring terminal technology included.
• Compatible with ABB AC500-eCo PLCs.
• Compact internal option-board design.
• Industrial-grade communication performance.

Technical Specifications

• Manufacturer: ABB
• Series: AC500-eCo Accessories
• Model: TA5146-CNW
• Product ID: 1SAP187300R0205
• Product type: Serial adapter option board
• Communication interface: CAN-bus
• Number of CAN interfaces: 1
• Isolation: CAN isolated
• Terminal type: Spring terminals
• Compatible platform: ABB AC500-eCo PLC
• Mounting type: Internal option board
• Temperature version: Wide temperature
• Dimensions (H × W × D): 42 × 28.5 × 54.2 mm
• Weight: approx. 0.02 kg
• EAN: 4053546123616

Reliable CAN-Bus Communication for Industrial Automation

The TA5146-CNW enables ABB AC500-eCo controllers to communicate with CAN-based industrial networks and intelligent field devices. CAN technology is widely used in machine automation, mobile equipment, distributed control systems and industrial communication networks due to its robustness and reliability.

Its isolated communication interface helps improve system reliability by reducing the effects of electrical noise and potential ground loop issues. Combined with ABB's wide temperature design, the module provides dependable performance in challenging industrial environments.

Typical Applications

• Industrial automation systems.
• CAN-bus communication networks.
• Machine and equipment control.
• Distributed control architectures.
• OEM machinery and automation equipment.
• Industrial monitoring systems.
• Manufacturing automation projects.

Trusted by Automation Engineers Worldwide

ABB AC500-eCo communication option boards provide dependable industrial networking capabilities, helping engineers integrate CAN-based devices and distributed automation systems with confidence and long-term operational reliability.
