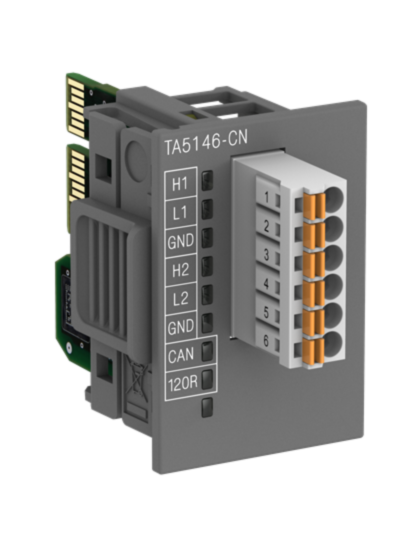

1SAP187300R0005 ABB TA5146-CN AC500, CAN serial interface adapter, Option board, 1xCAN-bus isolated, Spring terminals

Why Choose the ABB TA5146-CN CAN Serial Interface Adapter?

The ABB 1SAP187300R0005 TA5146-CN is a compact and highly reliable CAN serial interface adapter option board designed for ABB AC500-eCo programmable logic controllers. It provides a dedicated isolated CAN-bus communication interface, enabling seamless integration with industrial CAN networks and distributed automation systems. As part of the ABB AC500-eCo expansion range, the module delivers dependable communication performance for demanding industrial applications.

The TA5146-CN offers a cost-effective solution for expanding controller communication capabilities without requiring additional communication modules. Its compact option-board design integrates directly with compatible AC500-eCo CPUs while maintaining valuable panel space and simplifying system architecture.

Featuring 1 isolated CAN-bus interface and supplied with spring terminal connections, the TA5146-CN is ideally suited for industrial automation, machine control and distributed control applications requiring robust CAN network communication.

Key Advantages

• Compact CAN communication expansion board.
• 1 isolated CAN-bus interface.
• Designed specifically for ABB AC500-eCo controllers.
• Galvanic isolation improves communication reliability.
• Spring terminal connections included.
• Simple option-board installation.
• Reliable ABB industrial automation performance.

Key Features

• ABB TA5146-CN CAN serial interface adapter.
• 1 CAN-bus communication interface.
• Isolated CAN communication.
• Designed for AC500-eCo PLC systems.
• Spring terminals included as standard.
• Compact board-level installation.
• Suitable for distributed automation networks.
• Industrial-grade communication performance.

Technical Specifications

• Manufacturer: ABB
• Series: AC500-eCo Accessories
• Model: TA5146-CN
• Product ID: 1SAP187300R0005
• Product type: Serial adapter option board
• Communication interface: CAN-bus
• Number of CAN interfaces: 1
• Isolation: CAN isolated
• Terminal type: Spring terminals
• Compatible platform: ABB AC500-eCo PLC
• Mounting type: Internal option board
• Dimensions (H × W × D): 42 × 28.5 × 54.2 mm
• Weight: approx. 0.018 kg
• EAN: 4053546123609

Reliable CAN-Bus Connectivity for Industrial Automation

The TA5146-CN enables ABB AC500-eCo controllers to communicate efficiently with CAN-based industrial networks and devices. CAN technology is widely used in machine automation, mobile equipment, industrial control systems and distributed architectures due to its reliability, speed and resistance to electrical interference.

Its isolated communication interface enhances system robustness by reducing the impact of electrical noise and potential ground-loop issues. The compact design allows straightforward installation while maintaining a scalable and flexible automation platform.

Typical Applications

• Industrial automation systems.
• Distributed control architectures.
• Machine and equipment control.
• CAN-bus communication networks.
• OEM machinery and automation equipment.
• Industrial monitoring systems.
• Manufacturing automation projects.

Trusted by Automation Engineers Worldwide

ABB AC500-eCo communication option boards provide reliable industrial networking capabilities, helping engineers integrate CAN-based devices and automation systems with confidence and long-term operational stability.
