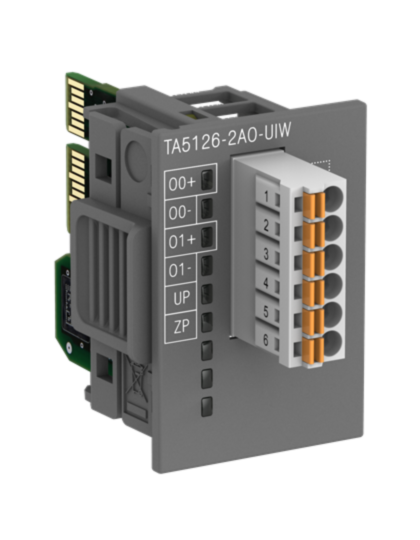

1SAP187100R0203 ABB TA5126-2AO-UIW 2 AO analog output channels U/I, 0 … 10V/0 … 20mA, 6 pole spring/cable front term. 3.50 mm pitch, Wide temperature range

Why Choose the ABB TA5126-2AO-UIW Analogue Output Option Board?

The ABB 1SAP187100R0203 TA5126-2AO-UIW is a compact and highly reliable analogue output option board designed for ABB AC500-eCo programmable logic controllers. It expands controller functionality by providing two additional analogue output channels capable of generating both voltage and current signals, making it ideal for industrial automation, process control and machine regulation applications.

As part of the ABB AC500-eCo automation platform, the TA5126-2AO-UIW provides a cost-effective solution for increasing analogue control capability without requiring larger expansion modules. The option board integrates directly into compatible controllers and includes spring terminals for fast, secure and dependable installation.

With 2 analogue outputs supporting voltage and current signals, 12-bit resolution and a wide temperature design, the TA5126-2AO-UIW is ideally suited for applications requiring accurate control of variable-speed drives, valves, actuators and industrial process equipment.

Key Advantages

• Compact analogue output expansion board for AC500-eCo PLCs.
• 2 analogue outputs supporting voltage and current signals.
• 12-bit resolution for accurate control applications.
• Wide temperature version for demanding industrial environments.
• Spring terminal connections included.
• Simple integration with compatible AC500-eCo controllers.
• Reliable ABB industrial automation performance.

Key Features

• ABB TA5126-2AO-UIW analogue output option board.
• 2 analogue output channels.
• Supports voltage and current output signals.
• 0-10 V and 0-20 mA output capability.
• 12-bit analogue resolution.
• Wide temperature (W) version.
• Compatible with ABB AC500-eCo PLCs.
• Spring terminal technology.
• Compact internal option-board design.

Technical Specifications

• Manufacturer: ABB
• Series: AC500-eCo Accessories
• Model: TA5126-2AO-UIW
• Product ID: 1SAP187100R0203
• Product type: Analogue output option board
• Analogue outputs: 2
• Output signal types: Voltage (U) and Current (I)
• Output ranges: 0-10 V, 0-20 mA
• Resolution: 12 Bit
• Terminal type: Spring terminals
• Compatible platform: ABB AC500-eCo PLC
• Mounting type: Internal option board
• Dimensions (H × W × D): 42 × 28.5 × 54.2 mm
• Weight: approx. 0.019 kg

Precise Analogue Control for Industrial Processes

Analogue output modules such as the ABB TA5126-2AO-UIW enable PLC systems to control variable process devices including frequency inverters, control valves, actuators and instrumentation. By generating accurate voltage and current output signals, the module provides precise regulation of industrial processes and machine functions.

Its 12-bit resolution delivers reliable analogue control performance, while the wide temperature specification ensures dependable operation in demanding industrial environments. The compact option-board format helps maximise controller flexibility while minimising panel space requirements.

Typical Applications

• Industrial process control.
• Variable speed drive control.
• Valve and actuator positioning.
• Machine automation systems.
• OEM machinery and equipment.
• Manufacturing process regulation.
• Industrial control panels.

Trusted by Automation Engineers Worldwide

ABB AC500-eCo analogue expansion modules provide precise control and dependable performance, helping automation engineers implement accurate process regulation and machine control solutions across a wide range of industrial applications.
