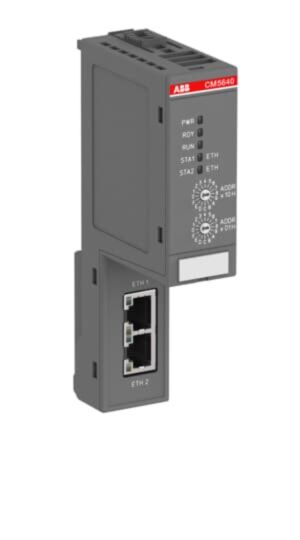

1SAP176000R0080 ABB CM5640-2ETH AC500,communication module

Why Choose the ABB 1SAP176000R0080 CM5640-2ETH Communication Module?

The ABB 1SAP176000R0080 CM5640-2ETH is a high-performance AC500 communication module designed to expand the networking capabilities of ABB AC500 programmable logic controllers. Featuring two Industrial Ethernet interfaces, the module supports TCP/IP, UDP and Modbus TCP protocols, enabling seamless communication with industrial devices, SCADA systems, HMIs and enterprise networks.

The CM5640-2ETH provides a flexible and cost-effective solution for integrating Ethernet-based communications into automation systems. By supporting widely used industrial networking standards, the module enables efficient data exchange between controllers, distributed devices and supervisory systems across modern industrial environments.

Designed specifically for the ABB AC500 PLC platform, the module integrates seamlessly into existing control architectures and is fully supported within ABB Automation Builder, simplifying configuration, diagnostics and commissioning.

Key Advantages

• Expands AC500 PLC Ethernet communication capabilities.
• Dual Industrial Ethernet interfaces.
• Supports TCP/IP, UDP and Modbus TCP protocols.
• Ideal for SCADA and HMI integration.
• Enables communication with Ethernet-based devices.
• Compact DIN rail mounting design.
• Simple integration within AC500 systems.
• Fully compatible with ABB Automation Builder.

Key Features

• Model: CM5640-2ETH
• Order Code: 1SAP176000R0080
• AC500 communication module.
• 2 Industrial Ethernet interfaces.
• Supports TCP/IP communications.
• Supports UDP communications.
• Supports Modbus TCP communications.
• No integrated Ethernet switch.
• Designed for ABB AC500 PLC systems.
• Industrial communication expansion module.

Technical Specifications

• Manufacturer: ABB
• Series: AC500
• Model: CM5640-2ETH
• Order Number: 1SAP176000R0080
• Product Type: PLC Communication Module
• Communication Function: TCP/IP, UDP, Modbus TCP
• Ethernet Interfaces: 2 × Industrial Ethernet
• Integrated Switch: No
• Data Transmission Rate: 100 Mbit/s
• Protection Rating: IP20
• Width: 28 mm
• Height: 135 mm
• Depth: 62 mm
• Net Weight: 0.101 kg
• EAN: 4053546050936
• Country of Manufacture: Germany

Designed for Industrial Ethernet Connectivity

The CM5640-2ETH enables AC500 PLCs to communicate efficiently across industrial Ethernet networks. Support for TCP/IP and UDP protocols allows integration with a broad range of automation devices and IT systems, while Modbus TCP support provides compatibility with numerous industrial control and monitoring products.

Its dual Ethernet interfaces provide flexible network architecture options, allowing engineers to create scalable automation systems while maintaining reliable communication performance. The module is particularly well suited to applications requiring connectivity between PLCs, HMIs, SCADA platforms and distributed control equipment.

Typical Applications

• Machine automation.
• Factory automation systems.
• SCADA communications.
• Industrial Ethernet networks.
• Modbus TCP integration.
• Process control systems.
• Building automation.
• Industrial data acquisition.

Trusted for Industrial Ethernet Communications

The ABB CM5640-2ETH communication module expands AC500 controller networking capabilities with dual Ethernet interfaces and support for TCP/IP, UDP and Modbus TCP, providing a flexible and reliable solution for modern industrial automation systems.
