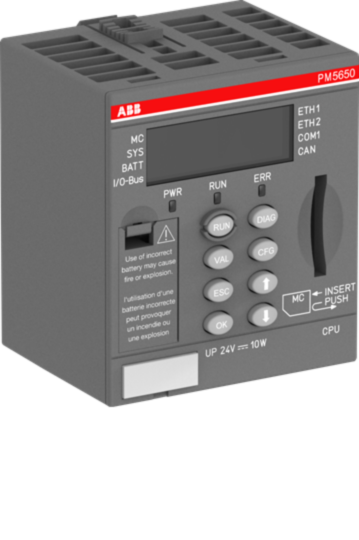

1SAP141000R0378 ABB PM5650-2ETH AC500,Prog.Logic Controller 80MB

Why Choose the ABB 1SAP141000R0378 PM5650-2ETH AC500 V3 PLC CPU?

The ABB 1SAP141000R0378 PM5650-2ETH is a high-performance AC500 V3 programmable logic controller (PLC) processor module designed for sophisticated industrial automation, infrastructure and process control applications. Combining substantial memory capacity, advanced processing performance and multiple integrated communication interfaces, the PM5650-2ETH provides a scalable automation platform for complex control systems.

Featuring 80 MB memory, dual Ethernet interfaces, integrated RS-232/RS-485 serial communications, CAN networking and a built-in diagnostic display, the PM5650-2ETH delivers the connectivity and processing power required for demanding industrial environments. Its modular AC500 architecture supports extensive expansion capabilities for both communication and I/O modules.

Designed for use with ABB Automation Builder engineering software, the PM5650-2ETH enables efficient programming, commissioning and maintenance while providing the reliability and flexibility expected from the AC500 V3 platform.

Key Advantages

• High-performance AC500 V3 PLC processor.
• 80 MB memory capacity.
• Dual integrated Ethernet interfaces.
• Integrated RS-232/RS-485 communications.
• Integrated CAN interface.
• Built-in diagnostic display.
• Supports modular expansion architecture.
• Compatible with ABB Automation Builder.

Key Features

• Model: PM5650-2ETH
• Order Code: 1SAP141000R0378
• AC500 V3 processor module.
• 80 MB memory.
• 2 × Ethernet communication ports.
• RS-232 / RS-485 serial communications.
• Integrated CAN interface.
• Integrated front display.
• Fast controller processing performance.
• Modular communication expansion support.
• Suitable for distributed automation systems.
• Industrial DIN rail installation.

Technical Specifications

• Manufacturer: ABB
• Series: AC500 V3
• Model: PM5650-2ETH
• Order Number: 1SAP141000R0378
• Product Type: PLC CPU Module
• Memory Size: 80 MB
• User Data Memory: Approx. 369,256 kB RAM
• Ethernet Interfaces: 2
• Serial Interfaces: RS-232 / RS-485
• CAN Interface: Integrated
• Display: Integrated front display
• Controller Processing Time: 0.00001 ms
• Supply Voltage: 20.4 to 28.8 V DC
• Rated Voltage: 24 V DC
• Protection Rating: IP20
• Width: 67.5 mm
• Height: 76 mm
• Depth: 62 mm
• Weight: 0.134 kg

Built for Advanced Automation Systems

The PM5650-2ETH is engineered for applications requiring substantial processing resources and extensive communications. Its dual Ethernet interfaces enable simultaneous network communication and engineering access, while the integrated serial and CAN interfaces support connectivity with field devices, legacy systems and industrial networks.

With its large memory capacity and fast processing performance, the controller is particularly well suited to complex machine automation, process control, energy management and infrastructure projects where reliability and scalability are essential. The integrated display simplifies diagnostics and commissioning tasks, reducing maintenance time and improving system visibility.

Typical Applications

• Industrial automation systems.
• Process control applications.
• Energy management systems.
• Water and wastewater treatment.
• Building automation.
• Infrastructure projects.
• Material handling systems.
• Distributed control architectures.

Trusted by Automation Engineers Worldwide

The ABB PM5650-2ETH combines powerful processing, extensive communications and large memory capacity within the AC500 V3 platform, making it an ideal solution for advanced industrial automation and infrastructure applications.
