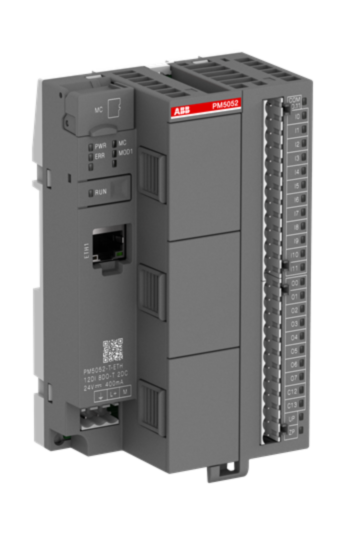

1SAP124000R0172 ABB PM5052-T-ETH AC500,Prog.Log.Controller 4MB,12DI/8DO-T/2DC, Ethernet, 24VDC, 3x Option Slots

Why Choose the ABB 1SAP124000R0172 PM5052-T-ETH AC500-eCo V3 PLC CPU?

The ABB 1SAP124000R0172 PM5052-T-ETH is a powerful AC500-eCo V3 programmable logic controller (PLC) CPU designed for demanding machine automation, process control and OEM applications. Offering enhanced memory capacity, integrated Ethernet communications and extensive onboard I/O, it provides an ideal solution for automation projects requiring greater processing capability while maintaining the compact footprint of the AC500-eCo platform.

The PM5052-T-ETH features 4 MB of memory, 12 digital inputs, 8 transistor digital outputs and 2 configurable digital I/O channels. Integrated Ethernet connectivity supports efficient communication with HMIs, SCADA systems and industrial networks, while two expansion option slots provide flexibility for future system enhancements.

As part of ABB's AC500-eCo V3 family, the controller is fully compatible with Automation Builder software, enabling efficient programming, commissioning and maintenance while delivering the reliability expected in industrial environments.

Key Advantages

• High-performance AC500-eCo V3 PLC CPU.
• 4 MB memory for larger applications.
• Integrated Ethernet communication.
• 12 digital inputs and 8 transistor outputs onboard.
• 2 configurable digital I/O channels.
• Two expansion option slots.
• Compatible with ABB Automation Builder.
• Compact DIN rail-mounted design.

Key Features

• Model: PM5052-T-ETH
• Order Code: 1SAP124000R0172
• AC500-eCo V3 CPU module.
• 4 MB application memory.
• 12 × 24 V DC digital inputs.
• 8 × transistor outputs (24 V DC, 0.5 A).
• 2 × configurable digital I/O channels.
• Integrated Ethernet interface.
• Real-time clock (RTC).
• Micro memory card support.
• 2 expansion option slots.
• DIN rail mounting.

Technical Specifications

• Manufacturer: ABB
• Series: AC500-eCo V3
• Model: PM5052-T-ETH
• Order Number: 1SAP124000R0172
• Product Type: PLC CPU Module
• Memory Capacity: 4 MB
• Digital Inputs: 12 × 24 V DC
• Digital Outputs: 8 × transistor outputs, 24 V DC, 0.5 A
• Configurable I/O: 2 × digital I/O channels
• Communication Interface: Ethernet
• Option Slots: 2
• Real-Time Clock: Integrated
• Memory Card Support: Yes
• Supply Voltage: 24 V DC
• Mounting: DIN Rail
• Protection Rating: IP20

Enhanced Performance for Complex Automation Tasks

The PM5052-T-ETH is designed for applications requiring greater processing resources than entry-level PLCs. With 4 MB of memory and integrated Ethernet communications, it can efficiently manage larger automation programs, data handling tasks and network communications while maintaining fast controller response times.

The combination of onboard digital I/O, configurable channels and expansion capability allows engineers to create highly flexible control architectures without significantly increasing panel space requirements. This makes the controller particularly attractive for OEM machinery, material handling systems and advanced factory automation applications.

Typical Applications

• Machine automation.
• Packaging machinery.
• Material handling systems.
• Production lines.
• Building automation.
• Water and wastewater treatment.
• Industrial process control.
• OEM equipment manufacturing.

Trusted by Automation Professionals

The ABB PM5052-T-ETH delivers high-performance control, expanded memory capacity and flexible Ethernet connectivity within a compact AC500-eCo V3 platform, making it an excellent choice for demanding industrial automation projects.
