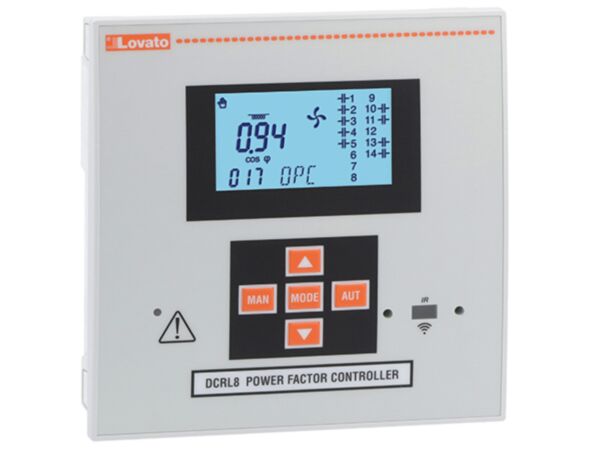

DCRL8 - POWER FACTOR CONTROLLER DCRL INPUT 380/415VAC

Why Choose the DCRL8?

The Lovato DCRL8 Auxiliary Supply is engineered for dependable control and monitoring architectures where robust insulation and surge endurance matter. With a rated insulation voltage Ui of 600 V and a 9.5 kV impulse withstand voltage, the DCRL8 provides solid electrical resilience. Built to perform from -20 to +60 °C and weighing 640 g, it offers reliable operation and a sturdy feel for panel builders and OEMs.

Conforming to IEC/EN 61010-1 and 61010-2-030 safety standards and EMC standards IEC/EN 61000-6-2 and 61000-6-3, this auxiliary supply suits regulated environments. It also meets UL508 and CSA C22.2-N°14 requirements and carries a Sustainability certification. For straightforward setups, event logging of alarms or configuration changes is not included, keeping operation simple and predictable. A designated product type DCRL8 ensures easy identification in documentation and panel schedules.

Key Benefits

• 600 V rated insulation voltage for strong electrical separation.
• 9.5 kV impulse withstand enhances surge resilience.
• Wide -20 to +60 °C operating temperature range suits varied sites.
• Conforms to IEC/EN 61010-1 and 61010-2-030 safety standards.
• EMC compliance per IEC/EN 61000-6-2 and 61000-6-3.
• Meets UL508 and CSA C22.2-N°14 requirements for North American panels.
• Simple operation with no event logging functionality to manage.

Technical Specification

• Product type designation: DCRL8
• Rated insulation voltage Ui (IEC/EN): 600 V
• Rated impulse withstand voltage Uimp: 9.5 kV
• Operating temperature: -20 to +60 °C
• Storage temperature: -30 to +80 °C
• Weight: 640 g

What’s Included

• Lovato DCRL8 auxiliary supply unit
• Installation and safety information leaflet
• Product data sheet (specifications)
• Protective packaging

Applications

• Auxiliary supply for control panels requiring IEC/EN compliant components
• Installations needing high insulation (600 V Ui) and surge withstand (9.5 kV)
• Industrial environments operating between -20 and +60 °C
• Projects requiring UL508 and CSA C22.2-N°14 conformity

Safety note: Install and commission only by qualified personnel. Observe all listed standards, respect the Ui and Uimp ratings and temperature limits, and isolate power before wiring or service.
