852-1813 Wago Lean Managed Switch;8 Ports 1000Base-T;2-Slot 1000BASE-SX/LX
MPN: 852-1813
Alt. SKU: 8521813
Special Price
£558.16
£465.13
Regular Price
£656.65
Why Choose the WAGO 852-1813 Lean Managed Switch?
The WAGO 852-1813 is a robust industrial lean managed Ethernet switch designed for high-performance automation networks. It features eight 10/100/1000BASE-T RJ45 ports, all supporting Power over Ethernet Plus (PoE+) at 30 W, and two 1000BASE-SX/LX SFP slots for flexible fiber optic connectivity. Its extended temperature range and rugged design ensure reliable operation in harsh industrial environments.
Technical Specifications
- RJ45 Ports: 8 x 10/100/1000 Mbps, all supporting PoE+ (IEEE 802.3at) up to 30 W per port
- SFP Slots: 2 x 1000 Mbps for 1000BASE-SX/LX modules (SFP modules available separately)
- Switching Method: Store-and-forward, non-blocking
- MAC Address Table: 8,000 entries
- Auto-Negotiation and Auto MDI/MDI-X: Supported on all ports
- Management Interfaces: Web-based, SNMP v1/v2c/v3, RMON
- Redundancy: Redundant DC power supply (24–57 V DC)
- Alarm Functions: Configurable via DIP switch
- Operating Temperature: -40°C to +60°C
- Mounting: DIN-35 rail
- Housing: IP30-rated metal housing
- Dimensions: 50 mm (W) x 160 mm (H) x 120 mm (D)
- Weight: Approx. 780g
- Certifications: CE, RoHS compliant
Applications
Ideal for industrial automation, machine control networks, and process engineering systems requiring Gigabit speed, PoE+ capability, and flexible fiber optic connectivity. Its robust design and extended temperature range make it suitable for deployment in harsh industrial environments.
Frequently Asked Questions
- Is the WAGO 852-1813 plug-and-play?
- Does it support redundant power inputs?
- Can all PoE+ ports be used simultaneously?
What Customers Say
"The WAGO 852-1813 offers reliable performance in our industrial network. Its PoE+ capability, fiber optic flexibility, and extended temperature range are significant advantages." – Automation Engineer
Key Features of the WAGO 852-1813
- 8-port lean managed Ethernet switch with 10/100/1000 Mbps RJ45 ports
- 2 x SFP slots for 1000BASE-SX/LX modules
- All RJ45 ports support PoE+ (IEEE 802.3at) up to 30 W per port
- Advanced management: Web-based, SNMP, RMON
- Redundant 24–57 V DC power inputs
- Configurable alarm functions via DIP switch
- Robust metallic housing suitable for DIN-rail mounting
- Extended operating temperature range: -40°C to +60°C
Comparison with Other Industrial Switches
Compared to other lean managed switches, the WAGO 852-1813 offers a combination of PoE+ capability on all RJ45 ports and flexible fiber optic connectivity through its SFP slots. Its extended temperature range and robust design make it a preferred choice for industrial applications requiring reliable data transmission and power delivery in harsh environments.
While it offers basic plug-and-play functionality, full utilization of its management and security features requires configuration.
Yes, it supports dual 24–57 V DC power inputs for redundancy.
Yes, all eight PoE+ ports can be used simultaneously to power PoE end devices, each supporting up to 30 W.
| Height | 240mm |
|---|---|
| Width | 185mm |
| Depth | 70mm |
| Barcode | 4066966072983 |
| Packed Quantity | 1 |
| RJ-45 Ports | 8 port 1000base-t |
| HS Code | 85176200 |
| SFP Slots | 2 Slots 1000Base-SX/LX |
| Type of Ethernet Switch | Managed |

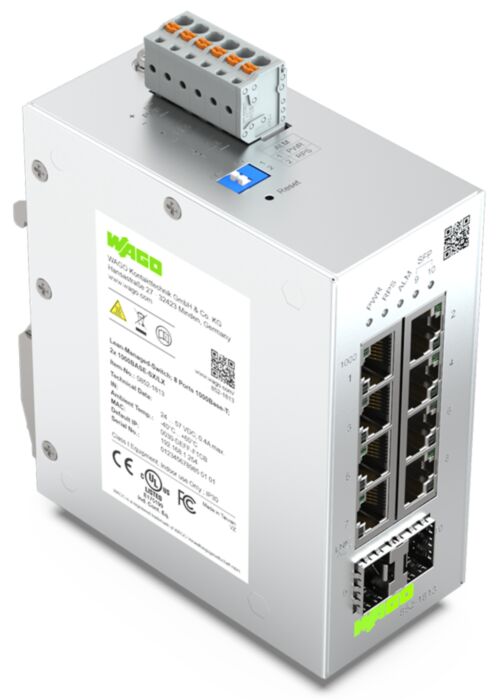

| Product Image | For Illustration Purposes Only |
| Country of Manufacture | Taiwan |
| Manufacturer | Wago |
| Manufacturer Part Number | 852-1813 |
| Alternative Product SKU | 8521813 |
