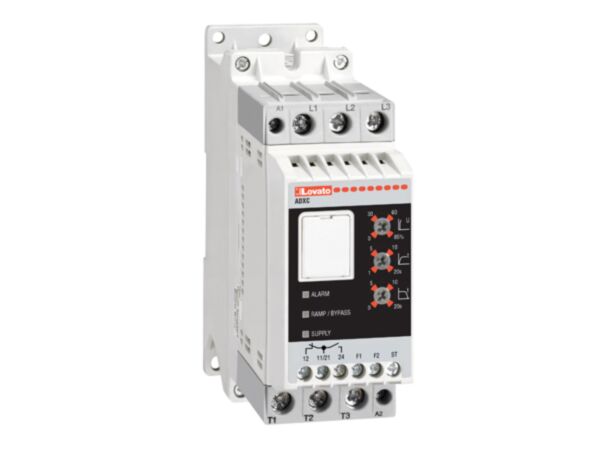

ADXC045600R2 - SOFT STARTER 45A 400V + BY-PASS
MPN: ADXC045600R2
Why Choose the ADXC045600R2?
The Lovato ADXC045600R2 soft starter delivers ultra compact, two-phase control for efficient three-phase motor starting. With integrated by-pass and a 45A rated starter current, it handles 220…600VAC applications with ease. Designed to the ADXC family format, this IP20 unit streamlines installation and reduces panel space while maintaining dependable performance. Ideal for smooth acceleration and reduced mechanical stress in typical starts.
Rated for 11 kW at 230VAC, 22 kW at 400VAC and 30 kW at 500VAC, the ADXC soft starter supports a 100…240VAC supply. It conforms to IEC/EN 60947-1 and 60947-4-2, UL508 and CSA C22-2 n° 14. With storage temperature -40 to +80 °C, max altitude 1000 m and pollution degree 2, it's built for reliable service. Basic parameters only keep commissioning simple and consistent.
Key Benefits
- Ultra compact ADXC design saves panel space.
- Two-phase control for smooth three-phase motor starting.
- Integrated by-pass for efficient running after start.
- Wide 220…600VAC operational range suits varied installations.
- Rated 45A starter current for robust duty.
- IP20 protection for enclosed panel environments.
- Simple set-up with basic parameters only.
Technical Specification
- Product type designation: ADXC
- Storage temperature: -40 to +80 °C
- Max altitude: 1000 m
- Pollution degree: 2
- IP degree of protection: IP20
What’s Included
- Lovato ADXC045600R2 soft starter with integrated by-pass
- Installation and operation instructions
- Manufacturer datasheet (downloadable)
- Protective packaging for transit
Applications
- Three-phase motor starting across 220…600VAC systems
- Panels requiring ultra compact, two-phase controlled soft starts
- General industrial machinery needing reduced mechanical stress at start
- Installations compliant with IEC/EN 60947-4-2
- Enclosed switchboards using IP20-rated components
Frequently Asked Questions
What is the rated motor power at common voltages?
It is rated 11 kW at 230VAC, 22 kW at 400VAC and 30 kW at 500VAC.
Does the ADXC045600R2 have an integrated by-pass?
Yes. This soft starter includes an integrated by-pass to support efficient operation.
What supply voltage does the control circuit require?
The rated supply voltage is 100…240VAC.
Which standards does it conform to?
It conforms to IEC/EN 60947-1 and 60947-4-2, UL508 and CSA C22-2 n° 14.
What environmental ratings apply?
IP20 protection, storage temperature -40 to +80 °C, max altitude 1000 m, pollution degree 2.
Safety note: Installation and commissioning must be performed by qualified personnel. Always isolate power before work and follow IEC/EN standards, local regulations and the manufacturer’s instructions to ensure correct protection, wiring and settings.
| Manufacturer Part Number | ADXC045600R2 |
|---|---|
| Manufacturer | Lovato |
| Barcode | 8013975209561 |
