ADXC04540024 - SOFT STARTER 45A 400V + BY-PASS 24V AC/DC
MPN: ADXC04540024
Why Choose the ADXC04540024?

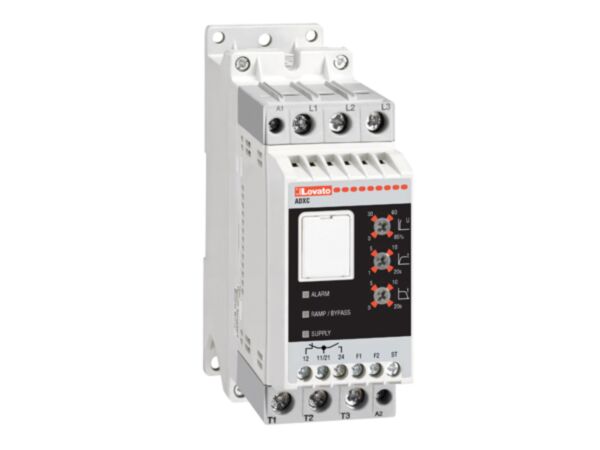

This Lovato ADXC soft starter (SKU ADXC04540024) features integrated by-pass for three-phase 400VAC motor control. The starter accepts an auxiliary supply of 110...400VAC via L1-L2-L3 and a 24VAC/DC start command on A1-A2. Rated 45A and IP20, it aligns with IEC/EN standards for dependable cabinet integration.
Built to the ADXC designation, this soft starter conforms to IEC/EN 60947-1 and 60947-4-2, plus UL508 and CSA C22-2 n° 14. It supports installations up to 1000 m, Pollution degree 2, with a storage temperature range of -40 to +80 °C. Ideal for UK control panels requiring reliable three-phase 400VAC motor starting and a 24VAC/DC control interface.
Key Benefits
- Three-phase 400VAC motor control in a compact soft starter form.
- Integrated by-pass design for streamlined cabinet integration.
- Wide auxiliary supply range: 110...400VAC via L1-L2-L3 inputs.
- Simple control interface: 24VAC/DC start on A1-A2 terminals.
- 45A rating to support suitable motor loads.
- IP20 protection for standard control panel environments.
- Conforms to IEC/EN 60947-4-2, UL508 and CSA C22-2 n° 14.
- Rated for installations up to 1000 m altitude, Pollution degree 2.
Technical Specification
- Product type designation: ADXC
- Storage temperature: -40 to +80 °C
- Max altitude: 1000 m
- Pollution degree: 2
- IP degree of protection: IP20
What’s Included
- Lovato ADXC soft starter module (ADXC04540024)
- Installation and safety instructions
- Manufacturer datasheet (downloadable)
- Protective packaging for transport and storage
Applications
- Soft starting of three-phase 400VAC motors
- Control panels using 24VAC/DC start command signals
- Industrial installations up to 1000 m altitude, Pollution degree 2
- Enclosed cabinet applications requiring IP20 protected components
Frequently Asked Questions
What supply voltages does the ADXC04540024 accept?
Auxiliary supply is 110...400VAC via L1-L2-L3 inputs, with a 24VAC/DC start command on A1-A2.
What motor voltage and current is this soft starter rated for?
It is for three-phase 400VAC motor control with a 45A rating.
Which standards does this soft starter conform to?
It conforms to IEC/EN 60947-1, IEC/EN 60947-4-2, UL508 and CSA C22-2 n° 14.
What environmental and protection ratings apply?
It has IP20 protection, Pollution degree 2, storage temperature -40 to +80 °C, and max altitude 1000 m.
Does this ADXC model include an integrated by-pass?
Yes, it is an ADXC... type soft starter with integrated by-pass.
Safety note: Installation and commissioning should be carried out by qualified personnel. Always isolate power, follow the manufacturer’s instructions, and adhere to applicable standards and regulations.
| Manufacturer Part Number | ADXC04540024 |
|---|---|
| Manufacturer | Lovato |
| Barcode | 8013975209554 |
