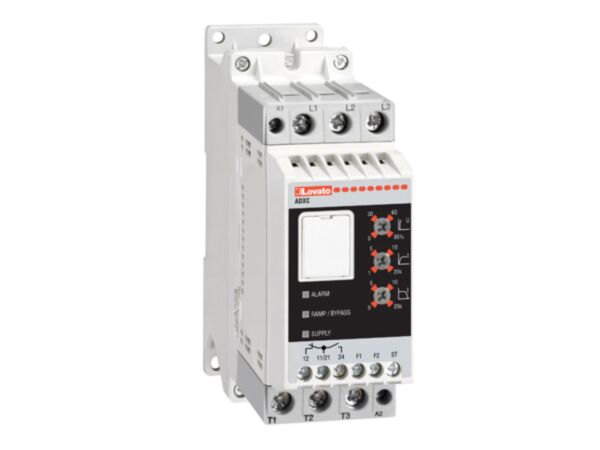

ADXC03740024 - SOFT STARTER 37A 400VAC + BY-PASS 24V AC/DC
MPN: ADXC03740024
Why Choose the ADXC03740024?
The Lovato ADXC soft starter ADXC03740024 provides controlled three-phase 400VAC motor starting with an integrated by-pass for space-efficient panel design. It accepts auxiliary supply 110...400VAC on L1-L2-L3 and a start command at 24VAC/DC via A1-A2, with a 37A rating. A dependable choice for UK industrial motor control where straightforward wiring and consistent performance are essential.
Part of the ADXC series, this soft starter carries IP20 protection and conforms to IEC/EN 60947-1 and IEC/EN 60947-4-2, plus UL508 and CSA C22-2 n° 14. It is specified for storage from -40 to +80 °C, max altitude 1000 m, and pollution degree 2 environments, with a Sustainability certification noted.
Key Benefits
- Integrated by-pass for compact installations and reduced external components.
- Three-phase 400VAC motor control for standard industrial power systems.
- Wide auxiliary supply range 110...400VAC via L1-L2-L3 inputs.
- Simple 24VAC/DC start command using A1-A2 control terminals.
- 37A current rating for suitably matched motor loads.
- IP20 degree of protection for protected panel-mount environments.
- Conformity with IEC/EN 60947, UL508 and CSA standards.
- Pollution degree 2 classification and max altitude of 1000 m.
Technical Specification
- Product type designation: ADXC
- Storage temperature: -40 to +80 °C
- Max altitude: 1000 m
- Pollution degree: 2
- IP degree of protection: IP20
What’s Included
- Lovato ADXC soft starter unit (ADXC03740024)
- Installation and safety instructions
- Panel mounting and wiring terminals
Applications
- Three-phase 400VAC motor control in industrial panels
- Systems requiring 24VAC/DC start command interfacing
- Installations needing integrated by-pass soft starters for space efficiency
- Enclosures where IP20 devices are acceptable behind covers
Frequently Asked Questions
What supply voltages are required?
Auxiliary supply is 110...400VAC via L1-L2-L3. The start command is 24VAC/DC using A1-A2 terminals.
Does this model include an integrated by-pass?
Yes. The ADXC03740024 features an integrated by-pass as part of the ADXC design.
Which standards does it comply with?
It conforms to IEC/EN 60947-1, IEC/EN 60947-4-2, UL508 and CSA C22-2 n° 14.
What is its environmental rating?
It has IP20 protection and pollution degree 2. Storage is -40 to +80 °C with a max altitude of 1000 m.
Is it suitable for 400VAC three-phase motors?
Yes. It is specified for three-phase 400VAC motor control with a 37A rating.
Safety note: Install and commission only by qualified personnel. Isolate all power sources before wiring and follow the manufacturer’s instructions and relevant standards.
| Manufacturer Part Number | ADXC03740024 |
|---|---|
| Manufacturer | Lovato |
| Barcode | 8013975209523 |
