ADXC032600R2 - SOFT STARTER 32A 600VAC + BY-PASS

Why Choose the ADXC032600R2?

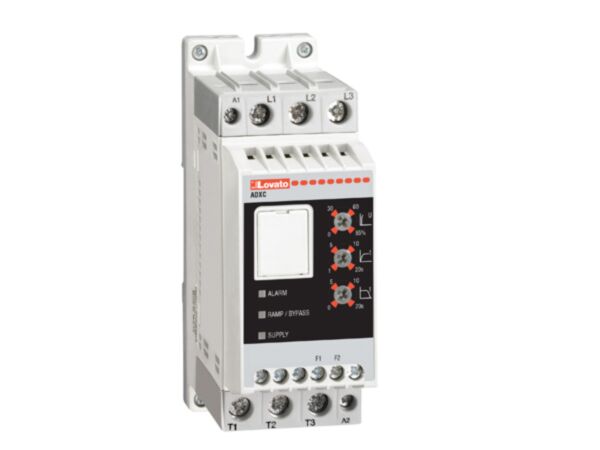

Lovato ADXC032600R2 is an ultra compact soft starter with two‑phase control and an integrated by‑pass for efficient three‑phase motor control. Rated operational voltage spans 220…600VAC with a 100…240VAC supply. Delivering 32A starter current, it supports motors up to 9 kW at 230VAC, 15 kW at 400VAC and 18.5 kW at 500VAC, helping you standardise across varied installations.

Built for straightforward setup with basic parameters only, the ADXC series offers dependable performance in control panels. The unit is IP20 with pollution degree 2 and suitable up to 1000 m altitude, with storage from −40 to +80 °C. Conformity includes IEC/EN 60947‑1 and 60947‑4‑2 as well as UL508 and CSA C22‑2 n° 14, plus Sustainability certification.

Key Benefits

• Ultra compact, two-phase control saves space in control panels.
• Integrated by-pass included within the soft starter.
• Wide 220…600VAC operational range covers diverse three-phase mains.
• 100…240VAC supply compatibility suits common control voltages.
• 32 A starter current supports motors to 18.5 kW at 500VAC.
• IP20 protection and pollution degree 2 for standard environments.
• Compliant with IEC/EN, UL508 and CSA standards.

Technical Specification

• Product type designation: ADXC
• Storage temperature: -40 to +80 °C
• Max altitude: 1000 m
• Pollution degree: 2
• IP degree of protection: IP20

What’s Included

• Lovato ADXC032600R2 soft starter (integrated by-pass)
• Manufacturer documentation (datasheet access)

Applications

• Three-phase motor control within 220…600VAC mains
• Installations using 100…240VAC control supply
• Control panels needing ultra compact, two-phase soft starting
• Motor duties up to 18.5 kW at 500VAC

Safety note: Install and commission only by qualified personnel. Isolate power before work and observe the stated ratings, IP20 and pollution degree 2 limits, and applicable standards and datasheet guidance.
