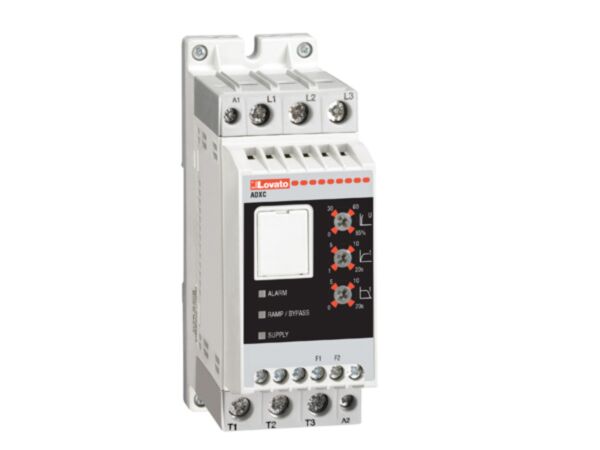

ADXC02540024 - SOFT STARTER 25A 400VAC + BY-PASS 24V AC/DC
MPN: ADXC02540024
Why Choose the ADXC02540024?
Lovato’s ADXC soft starter with integrated by-pass delivers controlled three-phase 400VAC motor starting in compact panels. Model ADXC02540024 (SKU ADXC02540024) accepts a wide auxiliary supply of 110...400VAC via L1-L2-L3 and a 24VAC/DC start command on A1-A2, making integration straightforward. Rated 25A with IP20 protection, it conforms to IEC/EN 60947 standards for dependable performance in compliant control systems.
Built for reliable installation, the ADXC series carries IP20 protection with a pollution degree 2 rating, suitable for typical enclosed control panels. It supports storage from -40 to +80 °C and operation up to 1000 m altitude. Compliance with IEC/EN 60947-1 and 60947-4-2, plus UL508 and CSA C22-2 n° 14, streamlines specification for UK and international projects.
Key Benefits
- Integrated by-pass design for simplified soft starting in compact panels.
- Three-phase 400VAC motor control compatibility for standard industrial systems.
- Wide auxiliary supply range 110...400VAC via L1-L2-L3.
- 24VAC/DC start command through A1-A2 terminals for flexible control.
- 25A rating for appropriately sized motor circuits.
- IP20 protection and pollution degree 2 for enclosed panel environments.
- Conforms to IEC/EN 60947 standards, with UL and CSA approvals.
Technical Specification
- Product type designation: ADXC
- Storage temperature: -40 to +80 °C
- Max altitude: 1000 m
- Pollution degree: 2
- IP degree of protection: IP20
What’s Included
- Lovato ADXC soft starter with integrated by-pass (ADXC02540024)
- Product documentation with installation and wiring information
- Manufacturer datasheet reference
Applications
- Three-phase 400VAC motor starting in industrial and commercial control panels
- Systems requiring 24VAC/DC start command from PLCs or control relays
- Panels designed for IEC/EN 60947 compliant motor control equipment
- Installations within IP20, pollution degree 2, enclosed environments
Frequently Asked Questions
Does this soft starter have an integrated by-pass?
Yes, it is an ADXC type with integrated by-pass.
What are the control supply and start command requirements?
Auxiliary supply is 110...400VAC on L1-L2-L3, with a 24VAC/DC start command on A1-A2.
What motors is it designed to control?
It is for three-phase 400VAC motor control with a 25A rating.
What environmental and protection ratings apply?
IP20 protection and pollution degree 2; storage -40 to +80 °C and max altitude 1000 m.
Which standards and approvals does it meet?
IEC/EN 60947-1 and 60947-4-2, plus UL508 and CSA C22-2 n° 14.
Safety note: Install and commission only by qualified personnel. Isolate power before wiring, follow applicable standards, and mount within a suitable enclosure due to IP20 protection.
| Manufacturer Part Number | ADXC02540024 |
|---|---|
| Manufacturer | Lovato |
| Barcode | 8013975209462 |
