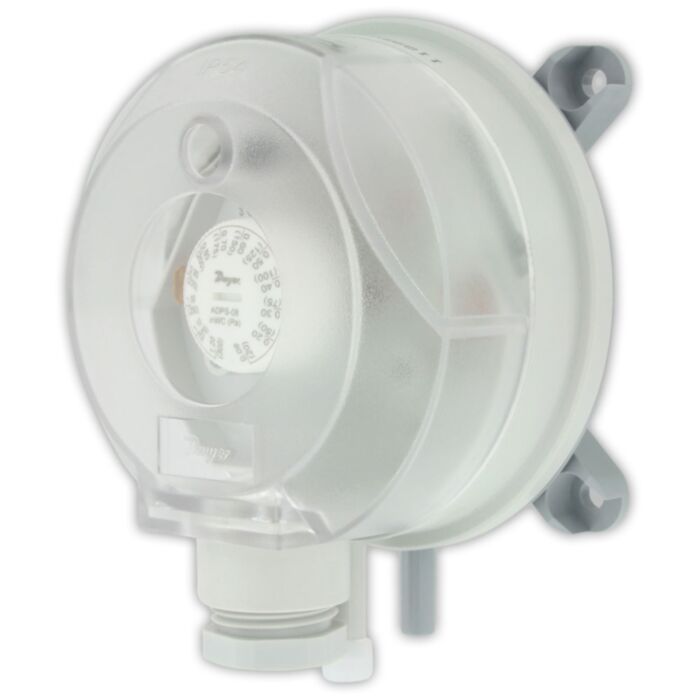

ADPS-08-2-N Dwyer SERIES ADPS/EDPS DIFFERENTIAL PRESSURE SWITCH
MPN: ADPS-08-2-N
Special Price
£14.40
£12.00
Regular Price
£18.00
ADPS-08-2-N Dwyer SERIES ADPS/EDPS DIFFERENTIAL PRESSURE SWITCH
| Service: |
| Air and non-combustible, compatible gases. |
| Wetted Materials: |
| ADPS: Diaphragm material: Silicone; Housing material: POM; Switch body: PA 6.6; Cover: Polystyrene; |
| EDPS: Diaphragm material: Silicone; Housing material: Switch body: PA 6.6; Cover: Polystyrene; Materials UL 94 V-0 rated. |
| Temperature Limits: |
| Process and ambient temperature from -4 to 185°F (-20 to 85°C). |
| Storage: |
| -40 to 185°F (-40 to 85°C). |
| Pressure Limits: |
| Max. Operating Pressure: 40" w.c. (10 kPa) for all pressure ranges. |
| Switch Type: |
| Single-pole double-throw (SPDT). |
| Electrical Rating: |
| Max. 1.5 A res./0.4 A ind./250 VAC, 50/60 Hz; Max. switching rate: 6 cycles/min. |
| Electrical Connections: |
| Push-on screw terminals. M20x1.5 with cable strain relief or optional 1/2" NPT connection. |
| Process Connections: |
| 5/16" (7.94 mm) outside diameter tubing, 1/4" (6.0 mm) inside diameter tubing. |
| Enclosure Rating: |
| NEMA 3 (IP54). |
| Mounting Orientation: |
| Vertically, with pressure connections pointing downwards. |
| Mechanical Working Life: |
| Over 106 switching operations. |
| Weight: |
| 4.4 oz (125 g). |
| Agency Approvals: |
| CE, ETL approved to UL508 and CSA C22.2#14 (EDPS only). |
| Manufacturer Part Number | ADPS-08-2-N |
|---|---|
| Manufacturer | Dwyer |
