Thermoplastic boxes are a lightweight general purpose choice for indoor or sheltered sites. Polyester IP66 enclosures add higher mechanical strength and environmental resistance for harsher or outdoor locations. Always check the datasheet for exact ratings.

Measure device widths, wiring bend radius and gland space, then select an enclosure with sufficient internal clearance and a compatible back plate. Leave room for heat dissipation and future expansion.

GW46001F is IP66 and designed for demanding environments. For outdoor use confirm UV stability, temperature limits and mounting guidance in the product datasheet.

IP66 is a common minimum for washdown. In high pressure or direct jet areas you may need higher protection. Validate against your hygiene and site standards.

Base the choice on load current, utilisation category and number of poles. Allow headroom for duty and ambient conditions. The GW70 series covers common ratings with four pole options.

Check the utilisation category and kW tables in the datasheet for direct on line motor isolation. Select a rating that meets or exceeds the motor duty and site rules.

Yes. GW70 enclosed isolators include a lockable handle so you can secure the switch in the OFF position during maintenance. See the product page for lock details.

Three pole models isolate three phase circuits. Four pole models isolate three phase plus neutral. Choose four pole where neutral isolation is required by design or standard.

Models are designed to the relevant IEC and EN standards. Check each product page for exact approvals and ratings before specification.

Choose a 32 A 2P+E interlocked model rated 230 V with an IP rating suitable for the location. Confirm pin configuration and mounting style to match your install.

Both provide protection against dust and water. IP55 offers higher protection against water jets compared to IP44 splash protection. Select according to the environment.

Some enclosures require a separate steel back plate. If not included, select a compatible GW4461 series plate or the accessory listed on the product page.

Use the enclosure knockouts or dedicated entry covers and gland plates. Match gland sizes to cable diameters and maintain the stated IP rating during installation.

Yes. Ranges are designed to the relevant IEC and EN standards. Always verify the specific approvals for your chosen model in the datasheet.

Replacement parts may be available. Share the MPN and enclosure size so we can advise on compatible spares or a complete enclosure swap if required.

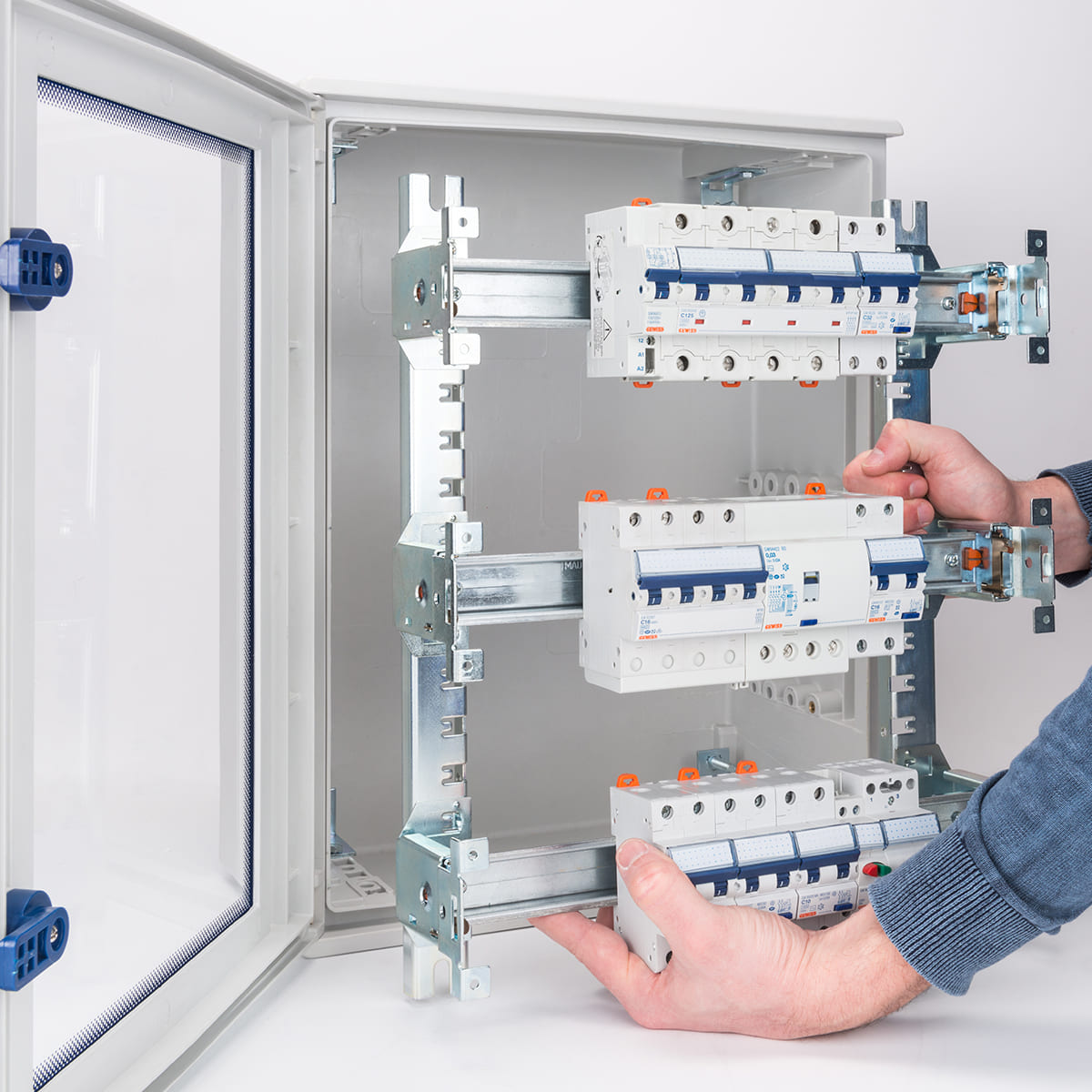

Typical accessories include steel back plates, mounting plates, DIN rail kits, entry covers and gland plates. See the accessory list on each enclosure page.

IK08 indicates resistance to 5 joule impacts. It helps ensure durability in industrial areas. Confirm the IK rating for the exact model you select.

Polyester options generally offer better UV performance. For thermoplastic models confirm UV stability and outdoor suitability in the datasheet.

Many items are available for next working day delivery subject to stock. Lead times are confirmed at checkout or on enquiry.

Yes. Share the MPN and we will send the matching datasheet and any installation notes. We can also help with selection.

Some isolators can function as local isolation for emergency use when applied and labelled correctly. Verify the standard and device suitability for your application.

Leave space around heat generating devices, follow manufacturer spacing guidance and consider ventilation or heat management where needed.

Match gland thread size and cable diameter to the knockout details in the datasheet. Use approved glands to maintain the IP rating.

Yes. Share quantities and MPNs and we will provide a quotation with pricing and availability.
