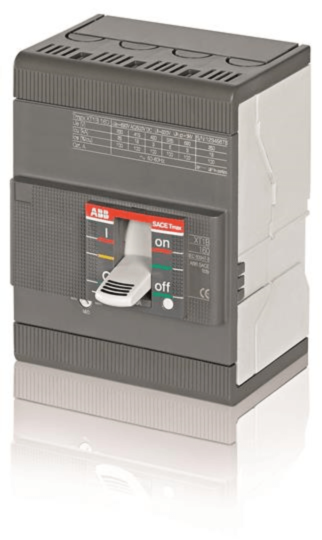

ABB xt1d 160 4p f f switch-disconnector tmax abb mccb
MPN: 1SDA068209R1
Alt. SKU: xt1d 160 4p f f
Special Price
£427.94
£356.62
Regular Price
£658.38
Why Choose the Moulded Case Circuit Breaker [1SDA068209R1]
The TMAX XT1D 160 fixed four-pole switch-disconnector features front-facing terminals for straightforward installation and maintenance. Designed for reliable isolation and switching in low-voltage electrical circuits, this robust device ensures secure disconnection under load. Its compact construction and compatibility with standard panel configurations make it ideal for industrial and commercial applications requiring dependable circuit control and protection.
Technical Specification
- Function: Fixed four-pole moulded case circuit breaker with front terminals.
- Rated Operational Voltage: 690 V AC, 500 V DC.
- Rated Uninterrupted Current (Iu): 160 A.
- Number of Poles: 4P.
- Rated Insulation Voltage (Ui): 800 V.
- Rated Impulse Withstand Voltage (Uimp): 8 kV.
- Connecting Capacity Main Circuit: Busbar 45.5 to 80 mm².
- Terminal Type: Bolt, front connection, tightening torque 6 N·m.
- Mechanical Durability: 25,000 cycles.
- Standards Compliance: IEC 60947-2.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the function of the TMAX XT1D 160 switch-disconnector?
It is a fixed four-pole moulded case circuit breaker with front terminals.
What is the rated operational voltage for this product?
The rated operational voltage is 690 V AC and 500 V DC.
What is the maximum connecting capacity for the main circuit?
The connecting capacity for the main circuit is 45.5 to 80 mm² busbar.
What is the tightening torque for the terminal connections?
The tightening torque for the terminal connections is 6 N·m.
How many mechanical cycles can the switch-disconnector endure?
The mechanical durability is rated for 25,000 cycles.
What standards does the TMAX XT1D 160 comply with?
It complies with IEC 60947-2. See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 1SDA068209R1 |
|---|---|
| Amperage | 160A |
| Number of Poles | 4 Pole |
| HS Code | 85362090 |
| Country of Manufacture | Italy |
| Manufacturer | ABB |
| Alternative Product SKU | xt1d 160 4p f f |
| Barcode | 8015644021054 |
