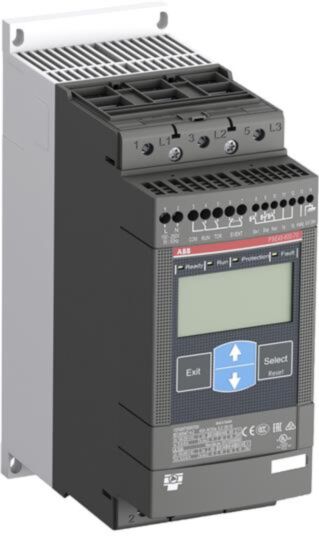

abb softstarter PSE18-600-70 pse range 18 amp
MPN: 1SFA897101R7000
Alt. SKU: PSE18-600-70
Special Price
£531.68
£443.07
Regular Price
£817.97
Why Choose the PSE18-600-70 [1SFA897101R7000]
The softstarter PSE18-600-70 has a rated maximum operational current of 18 A with an operating voltage span from 208...600 V AC. The rated control voltage is between 100...250 V AC at 50/60 Hz. PSE features a two-phase control with a soft start and stop through a voltage or a torque ramp. It has built-in bypass for easy installation and energy saving. A RUN, TOR, and Event signal is available from a relay output in NO (normally open state). The PSE has functions such as current limit, kickstart, analog output, EOL, underload, and locked rotor protection. To interact with PSE, it has an Illuminated display that uses symbols to become language neutral. As an option, you can add an identical external keypad with a rating of IP66. There are three ways to communicate with PSE. It can be done by hardwire inputs Start/Stop or by Reset of fault. Another popular option is the built-in fieldbus communication Modbus RTU. You can also use an external adaptor and a Fieldbus plug. PSE is a true general purpose softstarter. It’s a perfect balance between high starting capacity and cost efficiency. Very suitable for small to medium-sized three-phase motors with nominal currents from 18...370 A. Typical applications are, for example, pumps, fans, compressors, and conveyors.
Technical Specification
- Function: Soft start and stop with voltage or torque ramp, kick start, current limit, automatic restart, event log.
- Rated Operational Voltage: 208 ... 600 V AC.
- Rated Operational Current: 18 A.
- Control Voltage: 100 ... 250 V AC at 50/60 Hz; Control circuit voltage 24 V DC.
- Contact Configuration: RUN, TOR, and Event relays with NO (normally open) contacts.
- Degree of Protection: Main terminals IP00; optional external keypad rated to IP66.
- Terminal Type and Size: Screw terminals; main circuit connections accommodate rigid conductors 1/2 x 2.5 ... 70 mm².
- Starting Capacity: 4× rated current (Ie) for 10 seconds.
- Ramp Time: Adjustable from 0 to 30 seconds.
- Protection Features: Electronic overload, end-of-line (EOL), locked rotor, and underload protection.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the maximum operational current of the PSE18-600-70 softstarter?
The maximum operational current is 18 A.
What is the operating voltage range for the PSE18-600-70?
The operating voltage range is from 208 to 600 V AC.
Can the PSE18-600-70 be used with three-phase motors?
Yes, it is suitable for small to medium-sized three-phase motors with nominal currents from 18 to 370 A.
What type of protection features does the PSE18-600-70 include?
It includes electronic overload, end-of-line (EOL), locked rotor, and underload protection.
How can I communicate with the PSE18-600-70?
You can communicate via hardwire inputs (Start/Stop, Reset), Modbus RTU, or an external adaptor with a Fieldbus plug.
What is the degree of protection for the external keypad?
The optional external keypad has a rating of IP66.
What is the adjustable ramp time for the PSE18-600-70?
The ramp time is adjustable from 0 to 30 seconds.
| Manufacturer Part Number | 1SFA897101R7000 |
|---|---|
| Barcode | 7320500400593 |
| Max Rated Current | 18 Amps |
| Motor Power (kW) at 400V | 7.5Kw |
| Motor Power (kW) at 500V | 11Kw |
| KW Rating | 7.5kW |
| HS Code | 85371091 |
| Country of Manufacture | Sweden |
| Manufacturer | ABB |
| Alternative Product SKU | PSE18-600-70 |
