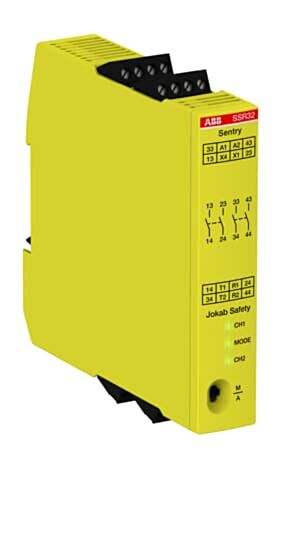

ABB SENTRY SSR32 24VDC 2no + 2no delayable
MPN: 2TLA010052R0400
Alt. SKU: SENTRY SSR32
Special Price
£254.02
£211.68
Regular Price
£298.84
Why Choose the Sentry SSR32 [2TLA010052R0400]
Sentry SSR32 Safety relay with relay outputs 2NO+2 delayed NO, +24 VDC supply voltage and screw terminals. For monitoring of safety devices with contacts, 1 or 2 equivalent channels, and safety devices with OSSD outputs. Manual or automatic reset selectable by switch on front. The two delayed NO relay outputs have an OFF-delay time of 0,5 second. Sentry safety relays cover various types of safety applications up to PLe / SIL3. Basic models provide reliable supervision of simpler safety functions, while universal models provide advanced features and high flexibility. Models with display offer preset configurations and extensive information to further simplify troubleshooting. Additional variants offer a high accuracy timer function of ± 1% and an adjustable time setting range from 0-999 s. High output current capacity of up to 6 A can save the use of an intermediary contactor. Multi-reset allows up to 10 safety relays connected to one reset light-button. All models are available with detachable push-in or screw terminals. Terminals and coding kit to mark removed terminals are available as accessories.
Technical Specification
- Function: Safety relay with 2NO + 2 delayed NO relay outputs for monitoring safety devices.
- Supply Voltage: 24 V DC.
- Rated Current: 3 A (AC-15 and DC-13 rated operational current).
- Contact Configuration: 2 normally open (NO) plus 2 delayed NO outputs with 0.5 s OFF-delay.
- Reset Type: Manual or automatic reset selectable via front switch.
- Degree of Protection: IP20.
- Terminal Type: Screw terminals, accepted wire sizes 0.2 to 3.3 mm² solid and ferruled wires.
- Mounting: DIN rail TH35-15 and TH35-7.5 compatible (IEC 60715).
- Tightening Torque: 0.7 N·m.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the supply voltage for the Sentry SSR32 Safety Relay?
The supply voltage for the Sentry SSR32 Safety Relay is 24 V DC.
What is the rated current capacity of the relay outputs?
The relay outputs have a rated current capacity of 3 A (AC-15 and DC-13 rated operational current).
What type of terminals does the Sentry SSR32 use?
The Sentry SSR32 uses screw terminals, accepting wire sizes from 0.2 to 3.3 mm² for solid and ferruled wires.
How can the reset type be configured?
The reset type can be configured as manual or automatic via a switch on the front of the relay.
What is the OFF-delay time for the delayed NO relay outputs?
The OFF-delay time for the delayed NO relay outputs is 0.5 seconds.
What mounting options are available for the Sentry SSR32?
The Sentry SSR32 is compatible with DIN rail TH35-15 and TH35-7.5 (IEC 60715).
What safety standards does the Sentry SSR32 comply with?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 2TLA010052R0400 |
|---|---|
| Barcode | 7350024483321 |
| Product Image | For Illustration Purposes Only |
| Manufacturer | ABB |
| Alternative Product SKU | SENTRY SSR32 |
| Product Lead Time | Delivery time 3-4 days |
