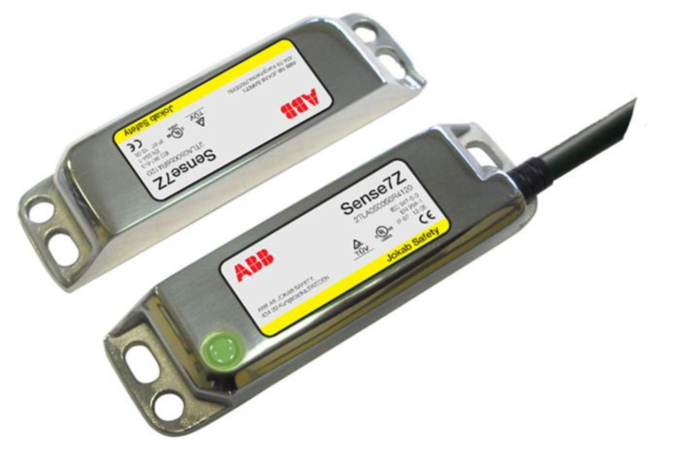

ABB sense7zm12 Safety Magnetic Switch, 2NC/1NO
MPN: 2TLA050056R2120
Alt. SKU: Sense7Z M12
Special Price
£236.66
£197.22
Regular Price
£278.42
Why Choose the Sense7Z M12 [2TLA050056R2120]
Safety magnetic switch complete with actuator, 2NC+1NO (guard closed and actuator present), stainless steel, LED, 250mm cable with M12-8 male connector. Sense7 is a coded magnetic non-contact switch for interlocking gates and hatches, or other moveable parts. Sense7 has a stainless steel housing that is designed for harsh environments and extreme temperatures. Sense7 offers an interlocking function reaching up to PL e/SIL3 with low level coding. +105°C is accepted for short duration during CIP/SIP cleaning.
Technical Specification
- Function: Safety magnetic switch with actuator, 2NC + 1NO contacts for guard closed and actuator present.
- Rated Control Supply Voltage: 24 V DC.
- Minimum Switching Capacity: 10 VDC, 1 mA.
- Connection: M12-8 male on 250 mm cable.
- Operating Distance: 5 mm (S n ).
- Housing Material: Stainless steel for harsh environments and high temperatures.
- Safety Rating: Up to PL e / SIL3 with low level coding.
- Temperature Rating: Continuous operation to +105°C, short duration tolerance for CIP/SIP cleaning.
- Probability of Dangerous Failure per Hour (PFDH): 2.6 x 10-8 hour.
- Weight: 0.205 kg.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the function of the Sense7 switch?
The Sense7 is a safety magnetic switch designed for interlocking gates and hatches, featuring 2NC + 1NO contacts for guard closed and actuator present.
What is the rated control supply voltage for the Sense7?
The rated control supply voltage for the Sense7 is 24 V DC.
What is the cable length and type of connector used?
The Sense7 comes with a 250 mm cable fitted with an M12-8 male connector.
What is the operating distance of the Sense7 switch?
The operating distance of the Sense7 switch is 5 mm (S n).
What is the temperature rating for the Sense7?
The Sense7 is rated for continuous operation up to +105°C, with short duration tolerance during CIP/SIP cleaning.
What materials are used in the housing of the Sense7?
The housing of the Sense7 is made from stainless steel, designed for harsh environments and extreme temperatures.
What safety rating does the Sense7 achieve?
The Sense7 offers an interlocking function reaching up to PL e/SIL3 with low level coding.
| Manufacturer | ABB |
|---|---|
| HS Code | 85365080 |
| Barcode | 7350024466751 |
| Country of Manufacture | United Kingdom (includes NI) |
| Inbuilt Aux | 2 N/C 1N/O |
| Alternative Product SKU | Sense7Z M12 |
| Manufacturer Part Number | 2TLA050056R2120 |
