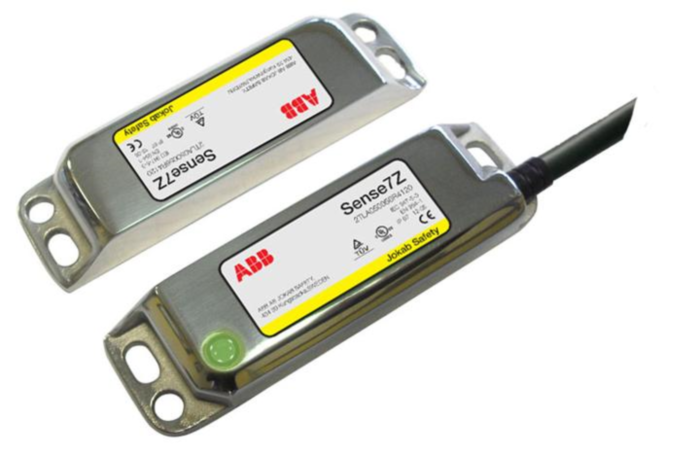

ABB sense7z 10m Safety Magnetic Switch, 2NC/1NO
MPN: 2TLA050056R6120
Alt. SKU: Sense7Z 10M
Special Price
£230.27
£191.89
Regular Price
£270.90
Why Choose the Sense7Z 10M [2TLA050056R6120]
Safety magnetic switch complete with actuator, 2NC+1NO (guard closed and actuator present), stainless steel, LED, 10m cable (8 leads). Sense7 is a coded magnetic non-contact switch for interlocking gates and hatches, or other moveable parts. Sense7 has a stainless steel housing that is designed for harsh environments and extreme temperatures. Sense7 offers an interlocking function reaching up to PL e/SIL3 with low level coding. +105°C is accepted for short duration during CIP/SIP cleaning.
Technical Specification
- Function: Safety magnetic switch with actuator, 2NC + 1NO contacts (guard closed and actuator present).
- Supply Voltage: 24 V DC rated control supply.
- Minimum Switching Capacity: 10 V DC, 1 mA.
- Output Configuration: 3 failsafe transistor outputs (PNP).
- Operating Distance: 5 mm sensing range.
- Enclosure Material: Stainless steel housing for harsh environments.
- Cable: 10 metres, 8 leads.
- Durability: Suitable for temperatures up to +105°C short term during CIP/SIP cleaning.
- Safety Performance: Interlocking up to PL e / SIL 3 with low level coding.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the function of the Sense7 safety magnetic switch?
The Sense7 is a safety magnetic switch designed for interlocking gates and hatches, featuring 2NC + 1NO contacts for guard closed and actuator present conditions.
What is the maximum supply voltage for the Sense7 switch?
The Sense7 operates at a rated control supply voltage of 24 V DC.
What is the cable length and configuration for the Sense7?
The Sense7 comes with a 10-metre cable that includes 8 leads.
What are the temperature limits for the Sense7 switch?
The switch is suitable for temperatures up to +105°C for short durations during CIP/SIP cleaning.
What is the safety performance level of the Sense7?
The Sense7 offers interlocking performance up to PL e/SIL 3 with low level coding.
Is the Sense7 suitable for harsh environments?
Yes, the Sense7 features a stainless steel housing designed for harsh environments and extreme temperatures.
What is the minimum switching capacity of the Sense7?
The minimum switching capacity is 10 V DC at 1 mA.
| Manufacturer | ABB |
|---|---|
| HS Code | 85365080 |
| Barcode | 7350024466744 |
| Country of Manufacture | United Kingdom (includes NI) |
| Inbuilt Aux | 2 N/C 1N/O |
| Alternative Product SKU | Sense7Z 10M |
| Manufacturer Part Number | 2TLA050056R6120 |
