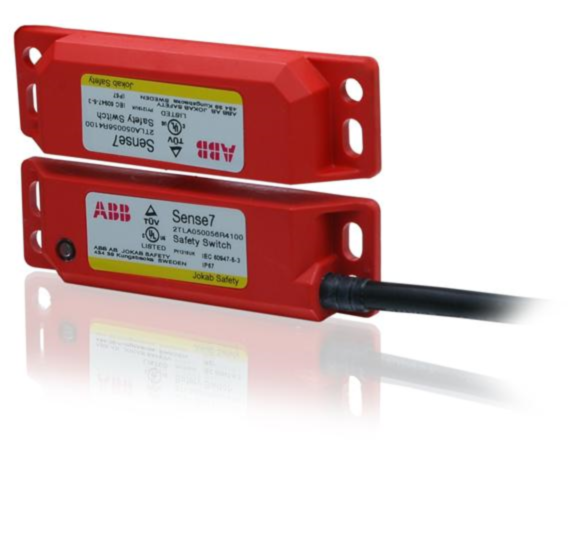

ABB sense75m Safety Magnetic Switch, 2NC/1NO
MPN: 2TLA050056R5100
Alt. SKU: Sense7 5M
Special Price
£134.74
£112.28
Regular Price
£160.09
Why Choose the Sense7 5M [2TLA050056R5100]
Safety Magnetic Switch, 2NC/1NO, Plastic, LED, 5m cable. +80°C is accepted for short duration during CIP/SIP cleaning.
Technical Specification
- Function: Safety Magnetic Switch with LED indicator.
- Contact Configuration: 2 Normally Closed (failsafe) + 1 Normally Open (non-failsafe).
- Rated Control Supply Voltage: 24 V DC.
- Minimum Switching Capacity: 10 V DC, 1 mA.
- Operating Distance: 5 mm.
- Cable Length: 5 metres.
- Maximum Operating Temperature: +80°C (short duration during CIP/SIP cleaning).
- Communication Interface: PNP transistor output.
- Weight: 0.319 kg.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the function of this safety magnetic switch?
The switch functions as a Safety Magnetic Switch with an LED indicator, featuring 2 Normally Closed and 1 Normally Open contact configuration.
What is the rated control supply voltage for this product?
The rated control supply voltage is 24 V DC.
What is the maximum operating temperature?
The maximum operating temperature is +80°C, but this is only acceptable for short durations during CIP/SIP cleaning.
What is the cable length of the switch?
The cable length is 5 metres.
What is the minimum switching capacity of the switch?
The minimum switching capacity is 10 V DC at 1 mA.
What type of communication interface does this switch use?
The switch uses a PNP transistor output for communication.
What are the conformity standards for this product?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer | ABB |
|---|---|
| HS Code | 85365080 |
| Barcode | 7350024466690 |
| Country of Manufacture | United Kingdom (includes NI) |
| Inbuilt Aux | 2 N/C 1N/O |
| Alternative Product SKU | Sense7 5M |
| Manufacturer Part Number | 2TLA050056R5100 |
