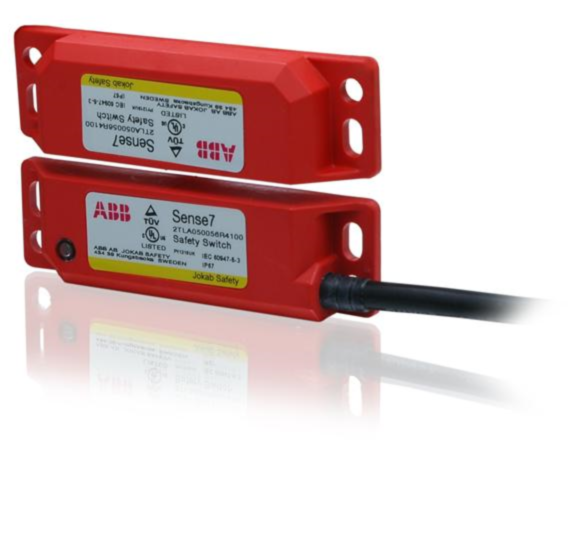

ABB sense72m Safety Magnetic Switch, 2NC/1NO
MPN: 2TLA050056R4100
Alt. SKU: Sense7 2M
Special Price
£120.86
£100.72
Regular Price
£142.19
Why Choose the Sense7 2M [2TLA050056R4100]
Safety Magnetic Switch, 2NC/1NO, Plastic, LED, 2m cable.+80°C is accepted for short duration during CIP/SIP cleaning.
Technical Specification
- Function: Safety magnetic switch with 2NC/1NO contact configuration.
- Voltage Rating: 24 V DC control supply.
- Current Rating: Minimum switching capacity of 10 VDC, 1 mA.
- Output Type: 2 failsafe transistor outputs and 1 non-failsafe, undelayed semiconductor output.
- Operating Distance: 5 mm sensing range.
- Connection: 2 m cable.
- Ambient Temperature: Rated for short duration up to +80°C during CIP/SIP cleaning.
- Enclosure Rating: UL/CSA Type 1.
- Reliability: Probability of dangerous failure (PFDH) of 2.6 x 10-8 per hour.
- Weight: 0.172 kg.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the contact configuration of the safety magnetic switch?
The switch features a 2NC/1NO contact configuration.
What is the voltage rating for this product?
The voltage rating is 24 V DC for the control supply.
What is the maximum ambient temperature during operation?
The switch is rated for short durations up to +80°C during CIP/SIP cleaning.
What is the length of the cable provided with the switch?
The switch comes with a 2 m cable for connection.
What is the output type of the safety magnetic switch?
It has 2 failsafe transistor outputs and 1 non-failsafe, undelayed semiconductor output.
What is the reliability rating of this switch?
The probability of dangerous failure (PFDH) is 2.6 x 10 -8 per hour.
What are the enclosure ratings for this product?
The switch has a UL/CSA Type 1 enclosure rating.
| Manufacturer | ABB |
|---|---|
| HS Code | 85365080 |
| Barcode | 7350024466683 |
| Country of Manufacture | United Kingdom (includes NI) |
| Inbuilt Aux | 2 N/C 1N/O |
| Alternative Product SKU | Sense7 2M |
| Manufacturer Part Number | 2TLA050056R4100 |
